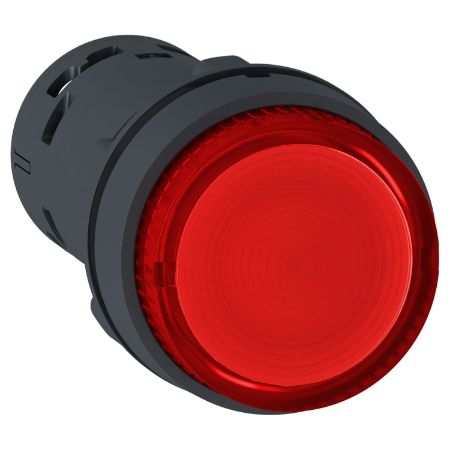

Picture of Monolithic illuminated push button, Harmony XB7, plastic, red, 22mm, integral LED, spring return, 230...240V AC, 1NO
Picture of Monolithic illuminated push button, Harmony XB7, plastic, red, 22mm, integral LED, spring return, 230...240V AC, 1NO
Picture of Monolithic illuminated push button, Harmony XB7, plastic, red, 22mm, integral LED, spring return, 230...240V AC, 1NO
Picture of Monolithic illuminated push button, Harmony XB7, plastic, red, 22mm, integral LED, spring return, 230...240V AC, 1NO
Picture of Monolithic illuminated push button, Harmony XB7, plastic, red, 22mm, integral LED, spring return, 230...240V AC, 1NO
Picture of Monolithic illuminated push button, Harmony XB7, plastic, red, 22mm, integral LED, spring return, 230...240V AC, 1NO
SKU:

XB7NW34M1

Monolithic illuminated push button, Harmony XB7, plastic, red, 22mm, integral LED, spring return, 230...240V AC, 1NO

Old price: $110.22 INC GST
$85.97 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
Monolithic illuminated push button, Harmony XB7, plastic, red, 22mm, integral LED, spring return, 230...240V AC, 1NO
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Declaration of conformity
Instruction sheet
Circularity Profile
Environmental Disclosure
CAD
Product Page Link
Product Data Sheet
This Harmony XB7, illuminated projecting monolithic red push button operates with a spring return mechanism, is supplied with 230V AC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, minimizing errors in machine control and enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name XB7
Sale per indivisible quantity 10
Device presentation monolithic product
IP degree of protection IP65 (front face) conforming to IEC 60529, IP20 (rear face) conforming to IEC 60529
Type of operator spring return
Range of product Harmony XB7
Bulb base integral LED
[Us] rated supply voltage 230 V AC at 50/60 Hz
Operator profile red projecting, unmarked
Contacts type and composition 1 NO
Connections - terminals screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Shape of signaling unit head round
Product or component type illuminated push-button
Mounting diameter 22 mm
Light source LED
Complementary
Device mounting fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-1
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver, cross compatible with JIS No 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliability λ <= 10exp(-6) at 17 V and 5 mA conforming to IEC 60947-5-4
Compatibility code XB7
Mechanical durability 300000 cycles
Supply voltage limits 195-264 V AC
Contact operation slow-break
[Ie] rated operational current 0.6 A at 120 V, AC-14, D300 conforming to IEC 60947-5-1, 0.3 A at 240 V, AC-14, D300 conforming to IEC 60947-5-1, 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1, 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1
Electrical durability 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate <108000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A at 230 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.3 A at 24 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
CAD overall height 29 mm
Cap/operator or lens colour red
Fixing mode fixing nut beneath head: 2-2.4 N.m
[Us] rated supply voltage 230 V
CAD overall depth 57.5 mm
CAD overall width 29 mm
Signalling type steady
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
Service life 70000 h at rated voltage and 25 °C
Current consumption 22...27 mA
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
Net weight 0.023 kg
Positive opening with (only NO)
Fixing center >= 30 x 40 mm (support panel) plastic - thickness: 2-6 mm, >= 30 x 40 mm (support panel) metal - thickness: 1-6 mm
Short-circuit protection 4 A cartridge fuse type gG conforming to IEC 60947-5-1
Terminals description ISO n°1 (13-14)NO
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -25-70 °C
Electromagnetic emission class B conforming to IEC 55011
Electrical shock protection class class II conforming to IEC 61140
NEMA degree of protection NEMA 12 conforming to UL 50 E
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-1, IEC 60947-1, CSA C22.2 No 14, JIS C8201-5-1, UL 508
Product certifications CCC, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.0 cm
Package 1 Width 3.2 cm
Package 1 Length 3.2 cm
Package 1 Weight 25.0 g
