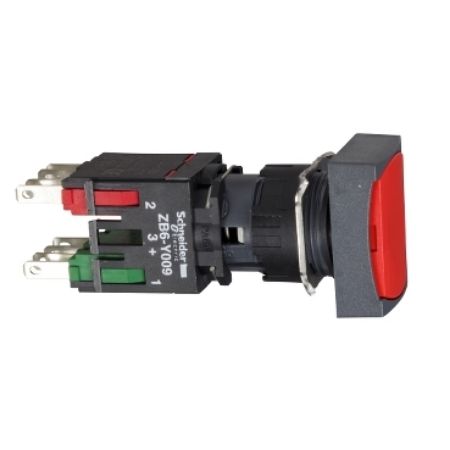

Picture of Complete push button, Harmony XB6, red rectangular flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked
SKU:

XB6DA45B

Complete push button, Harmony XB6, red rectangular flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked

Old price: $124.52 INC GST
$97.13 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
Complete push button, Harmony XB6, red rectangular flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name XB6
Operator profile red flush, unmarked
Contact operation slow-break
Bezel material plastic
Sale per indivisible quantity 1
Contacts type and composition 1 NO + 1 NC
Connections - terminals Faston connectors, connection size: 2.8 x 0.5 mm
Shape of signaling unit head rectangular
Product or component type complete push-button
Type of operator spring return
Mounting diameter 16 mm
Range of product Harmony XB6
Complementary
CAD overall depth 57 mm
CAD overall width 24 mm
Electrical reliability λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4
Operating position any position
Compatibility code XB6
Mechanical durability 2000000 cycles
[Ie] rated operational current 0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1, 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1, 1.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1, 3 A at 120 V, AC-15, B300 conforming to EN/IEC 60947-5-1
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to EN/IEC 60947-1
Electrical durability 1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
CAD overall height 18 mm
[Uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60947-1
Net weight 0.022 kg
Positive opening with conforming to EN/IEC 60947-5-1 appendix K
Contacts material silver alloy (Ag/Ni)
Operating travel 3.5 mm (total travel), 2 mm (NC changing electrical state), 1 mm (NO changing electrical state)
Short-circuit protection 6 A cartridge fuse type gG
Operating force 4.5 N NC changing electrical state, 3.5 N NO changing electrical state
Terminals description ISO n°1 (21-22)NC, (13-14)NO
Environment
Protective treatment TC
Electrical shock protection class class II conforming to IEC 61140
NEMA degree of protection NEMA 4X conforming to CSA C22.2 No 94, NEMA 4 conforming to CSA C22.2 No 94, NEMA 13 conforming to CSA C22.2 No 94, NEMA 4X conforming to UL 50, NEMA 4 conforming to UL 50, NEMA 13 conforming to UL 50
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards UL 508, JIS C 852, EN/IEC 60947-5-1, EN/IEC 60947-5-5, EN/IEC 60947-1, JIS C 4520, CSA C22.2 No 14
Ambient air temperature for operation -25-70 °C
Product certifications UL, CSA, CCC, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 9.000 cm
Package 1 Length 12.000 cm
Package 1 Weight 16.000 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.149 kg
