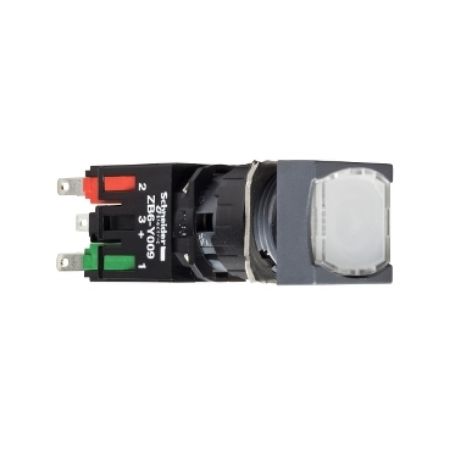

Complete illuminated push button, Harmony XB6, white square flush, 16mm, spring return 1NO 12...24V

Old price: $151.14 INC GST
$117.89 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
Complete illuminated push button, Harmony XB6, white square flush, 16mm, spring return 1NO 12...24V
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Environmental Disclosure
Catalog
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Bulb base integral LED
[Us] rated supply voltage 12...24 V AC/DC
Device short name XB6
Operator profile white flush, unmarked
Contact operation slow-break
Bezel material plastic
Sale per indivisible quantity 1
Contacts type and composition 1 NO
Connections - terminals Faston connectors, connection size: 2.8 x 0.5 mm
Shape of signaling unit head square
Product or component type complete illuminated push-button
Type of operator spring return
Mounting diameter 16 mm
Light source LED
Range of product Harmony XB6
Complementary
CAD overall depth 57 mm
CAD overall width 18 mm
Electrical reliability λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4
Operating position any position
Compatibility code XB6
Supply voltage limits 6-30 V AC/DC
[Ie] rated operational current 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1, 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1, 1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1, 3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1
Signalling type steady
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
Surge withstand 2 kV in free air conforming to IEC 61000-4-5, 1 kV direct contact conforming to IEC 61000-4-5
Electrical durability 1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Current consumption 15 mA
CAD overall height 18 mm
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
Net weight 0.022 kg
Positive opening with conforming to IEC 60947-5-1 appendix K
Contacts material silver alloy (Ag/Ni)
Operating travel 3.5 mm (total travel), 1 mm (NO changing electrical state)
Short-circuit protection 6 A cartridge fuse type gG
Operating force 3.5 N NO changing electrical state
Terminals description ISO n°1 (13-14)NO
Environment
Electromagnetic emission class B conforming to IEC 55011
Resistance to fast transients 2 kV conforming to IEC 61000-4-4
Protective treatment TC
Electrical shock protection class class II conforming to IEC 61140
Resistance to electrostatic discharge 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
NEMA degree of protection NEMA 4X conforming to CSA C22.2 No 94, NEMA 4 conforming to CSA C22.2 No 94, NEMA 13 conforming to CSA C22.2 No 94, NEMA 4X conforming to UL 50, NEMA 4 conforming to UL 50, NEMA 13 conforming to UL 50
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards IEC 60947-5-5, JIS C 852, JIS C 4520, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation -25-70 °C
Product certifications GOST, UL, CCC, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.0 cm
Package 1 Width 11.0 cm
Package 1 Length 16.0 cm
Package 1 Weight 15.0 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.077 kg
