SKU:

XALD01

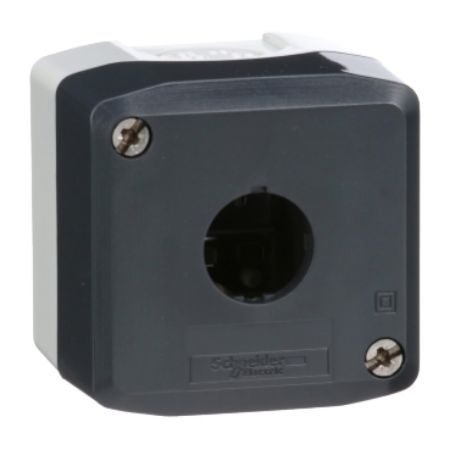

Harmony XALD XALK, Empty enclosure, plastic, dark grey lid, for push button 22mm, 1 cut out

Old price: $53.02 INC GST
$41.36 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
Harmony XALD XALK, Empty enclosure, plastic, dark grey lid, for push button 22mm, 1 cut out
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Declaration of conformity
Image of product in real life situation
Instruction sheet
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony XALD empty control station has 1 cut-out for 1 push button / 1 function for controlling of operation in machines. This 1 cut-out dark grey empty control station enables machine builders to customize their machines by easily adding any control and signalling functionality units on the enclosure according to the operation required. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name XALD
Number of cut-out 1 cut-out
Colour of cover dark grey (RAL 7016)
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Colour of base of enclosure light grey (RAL 7035)
Range of product Harmony XALD
Material polycarbonate
Product or component type empty control station
Cable entry 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12-12 mm, 1 knock-out for cable entry, clamping capacity: 14-14 mm
Product destination for XB5 Ø 22 mm control and signalling units
Complementary
Group of product standard grey
Compatibility code XALD
Assembly style for customer assembly
Customizable 1, no
Number of vertical rows 1
Main group 1 cut-out
Electrical composition code SR1, PF2, PF1, MF2, MF1, PR1, SR2, SF2, SF1, MR1
GCR BRIDGE XALD01CUST01
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.136 kg
Number of horizontal rows 1
Mounting of block front mounting, rear mounting
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 62262
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Standards JIS C8201-1, UL 508, IEC 60947-1, JIS C8201-5-1, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-5-5
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.500 cm
Package 1 Width 7.000 cm
Package 1 Length 7.000 cm
Package 1 Weight 114.000 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.391 kg
Unit Type of Package 3 3
Number of Units in Package 3 480
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 69.404 kg
