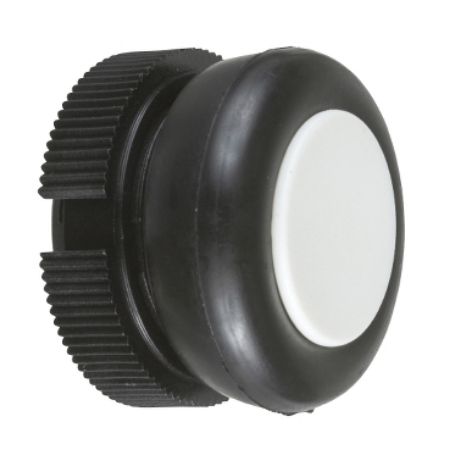

Picture of Head for push button, Harmony XAC, plastic, white, booted, spring return
Picture of Head for push button, Harmony XAC, plastic, white, booted, spring return
Picture of Head for push button, Harmony XAC, plastic, white, booted, spring return
Picture of Head for push button, Harmony XAC, plastic, white, booted, spring return
Picture of Head for push button, Harmony XAC, plastic, white, booted, spring return
Picture of Head for push button, Harmony XAC, plastic, white, booted, spring return
Picture of Head for push button, Harmony XAC, plastic, white, booted, spring return
Picture of Head for push button, Harmony XAC, plastic, white, booted, spring return
Picture of Head for push button, Harmony XAC, plastic, white, booted, spring return
Picture of Head for push button, Harmony XAC, plastic, white, booted, spring return
SKU:

XACA9411

Head for push button, Harmony XAC, plastic, white, booted, spring return

Old price: $19.47 INC GST
$15.19 INC GST
Available for Shipping : 24-Jul-2025
Head for push button, Harmony XAC, plastic, white, booted, spring return
Be the first to review this product
Manufacturer: Schneider Electric
Image of product in real life situation
Catalog
Environmental Disclosure
Image of product in real life situation
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony XAC, booted head for push buttons operates with spring return / impulse mechanism and uses front mounting. This white booted button head provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. The booted head prevents growth of bacteria in joints and gaps: ideal for high hygiene environments like food and beverage industry. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Range of product Harmony XAC
Component name XACA
Product or component type head for push-button
Complementary
Product compatibility XACA..
Ambient air temperature for storage -40-70 °C
Sale per indivisible quantity 10
IP degree of protection IP65 conforming to IEC 60529
Cap/operator or lens colour white
Marking unmarked
Shock resistance 100 gn conforming to IEC 60068-2-27
Ambient air temperature for operation -25-70 °C
IK degree of protection IK08 conforming to IEC 62262
Overvoltage category class II conforming to IEC 61140
Mounting location front of enclosure
Net weight 0.01 kg
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Standards UL 508, IEC 60204-32, IEC 60947-5-1, CSA C22.2 No 14
Operator additional information booted
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 11.000 cm
Package 1 Length 5.000 cm
Package 1 Weight 9.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 3.000 cm
Package 2 Width 11.000 cm
Package 2 Length 10.000 cm
Package 2 Weight 95.000 g
Unit Type of Package 3 3
Number of Units in Package 3 700
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 7.110 kg
