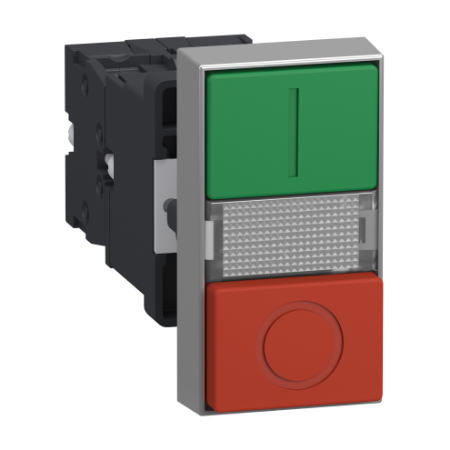

Illuminated double headed push button, Easy Harmony XA2, plastic, 22mm, 1 green flush I + 1 light + 1 red flush O, 24V AC DC, 1NO + 1NC

Old price: $200.42 INC GST
$50.10 INC GST
This product has a minimum quantity of 10
Available for Shipping : 05-Aug-2025
Product Selector
Illuminated double headed push button, Easy Harmony XA2, plastic, 22mm, 1 green flush I + 1 light + 1 red flush O, 24V AC DC, 1NO + 1NC
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Catalog
Declaration of conformity
Environmental Disclosure
Instruction sheet
Image of product in real life situation
Product Page Link
Product Data Sheet
This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. It is a modular double-headed pushbutton with 1 pilot light. This pushbutton operates with a spring return / impulse mechanism. This pushbutton provides an ergonomic interface for controlling machines. It has 1 NO and 1 NC contact with slow-break operation. This pushbutton has a pilot light with a 24V AC/DC rating. This is a plastic pushbutton with a metallic-look ring design bezel and rectangular head. It is an IP40 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, GB 14048.5 and IEC 60947-5-1 standards . It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is clearly distinguishable visually at a distance due to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name XA2
Light source colour white
Bezel material plastic
Device presentation complete product
Fixing collar material plastic
Product or component type complete illuminated double-headed push-button
Range of product Easy Harmony XA2
Complementary
Bulb base integral LED
[Us] rated supply voltage 24 V AC/DC at 50/60 Hz, 24 V
Shape of screw head cross
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Depth 55.4 mm
Width 29.8 mm
Type of operator spring return
Compatibility code XA2E
Mechanical durability 500000 cycles
Supply voltage limits 0.8-1.2 V AC/DC
Operator profile red flush, O (red), green flush, I (green), 2 flush push-buttons - 1 central pilot light
Contact operation slow-break
[Ie] rated operational current 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
Signalling type steady
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Surge withstand 1 kV conforming to IEC 61000-4-5
Service life 10000 h
Contacts type and composition 1 NO + 1 NC
Connections - terminals screw clamp terminals, >= 1 x 0.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1, screw clamp terminals, <= 1 x 2.5 mm² without cable end conforming to IEC 60947-1
Electrical durability 500000 cycles, AC-15, 3 A at 240 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Current consumption 20 mA
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.072 kg
Cap/operator or lens colour green + red
Shape of signaling unit head rectangular
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Operators description green ''I'' - red ''O''
Mounting diameter 22.5 mm
Positive opening with conforming to IEC 60947-5-1 appendix K
Light source protected LED
Contacts material silver alloy (Ag/Ni)
Operating travel 2.65 mm (NO changing electrical state), 1.75 mm (NC changing electrical state)
Short-circuit protection 10 A gL fuse conforming to IEC 60269-1
Terminals description ISO n°1 (11-12)NC, (13-14)NO
Height 81.3 mm
Contacts usage standard contacts
Environment
Overvoltage category class I conforming to IEC 536
Ambient air temperature for storage -40-85 °C
IP degree of protection IP40 conforming to IEC 60529
Vibration resistance 15 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
Shock resistance 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards GB 14048.5, GB 14048.1, IEC 60947-5-1
Ambient air temperature for operation -25-55 °C
IK degree of protection IK05 conforming to IEC 50102
Product certifications CE, EAC, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.13 cm
Package 1 Width 2.98 cm
Package 1 Length 5.54 cm
Package 1 Weight 72.1 g
Unit Type of Package 2 2
Number of Units in Package 2 70
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 6 kg
Unit Type of Package 3 3
Number of Units in Package 3 1120
Package 3 Height 95 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 97 kg

Related products

Tightening tool for fixing nut, Harmony XB5, plastic, black

ZB5AZ905
$19.22 INC GST $24.64 INC GST
View Detail
