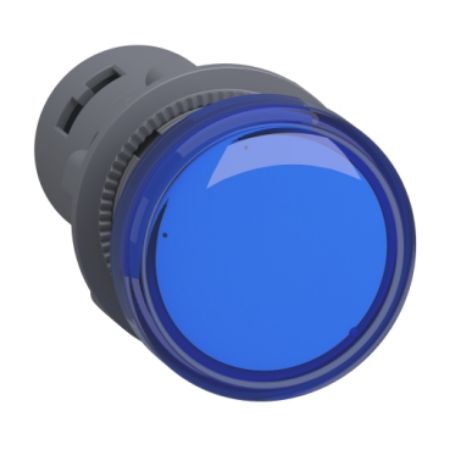

Picture of Monolithic pilot light, Easy Harmony XA2, plastic, blue, 22mm, integral LED, screw clamp terminals, 380…400V AC, anti interference
Picture of Monolithic pilot light, Easy Harmony XA2, plastic, blue, 22mm, integral LED, screw clamp terminals, 380…400V AC, anti interference
Picture of Monolithic pilot light, Easy Harmony XA2, plastic, blue, 22mm, integral LED, screw clamp terminals, 380…400V AC, anti interference
Picture of Monolithic pilot light, Easy Harmony XA2, plastic, blue, 22mm, integral LED, screw clamp terminals, 380…400V AC, anti interference
Picture of Monolithic pilot light, Easy Harmony XA2, plastic, blue, 22mm, integral LED, screw clamp terminals, 380…400V AC, anti interference
Picture of Monolithic pilot light, Easy Harmony XA2, plastic, blue, 22mm, integral LED, screw clamp terminals, 380…400V AC, anti interference
Picture of Monolithic pilot light, Easy Harmony XA2, plastic, blue, 22mm, integral LED, screw clamp terminals, 380…400V AC, anti interference
Picture of Monolithic pilot light, Easy Harmony XA2, plastic, blue, 22mm, integral LED, screw clamp terminals, 380…400V AC, anti interference
Picture of Monolithic pilot light, Easy Harmony XA2, plastic, blue, 22mm, integral LED, screw clamp terminals, 380…400V AC, anti interference
Picture of Monolithic pilot light, Easy Harmony XA2, plastic, blue, 22mm, integral LED, screw clamp terminals, 380…400V AC, anti interference
SKU:

XA2EVQ6LC

Monolithic pilot light, Easy Harmony XA2, plastic, blue, 22mm, integral LED, screw clamp terminals, 380…400V AC, anti interference

Old price: $33.44 INC GST
$8.36 INC GST
This product has a minimum quantity of 10
Available for Shipping : 19-Nov-2025
Product Selector
Monolithic pilot light, Easy Harmony XA2, plastic, blue, 22mm, integral LED, screw clamp terminals, 380…400V AC, anti interference
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Catalog
Environmental Disclosure
Declaration of conformity
Instruction sheet
Image of product in real life situation
Product Page Link
Product Data Sheet
This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This monolithic blue pilot light comes with integral LED. This single component pilot light provides clear visual feedback on the status of machines. This pilot light has a 380V to 400V AC rating. This is a plastic component and weighs 0.02kg. It is an IP65 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is sold in lots of 10. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Bulb base integral LED
Device short name XA2
Cap/operator or lens colour blue
Shape of signaling unit head round
Product or component type monolithic pilot light
Mounting diameter 22.5 mm
Light source LED
Range of product Easy Harmony XA2
[Us] rated supply voltage 380...400 V AC 50/60 Hz
Complementary
Device mounting fixing hole 22.3 +0.4/0 conforming to IEC 60947-5-1
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with Philips No 2 screwdriver
Depth 53 mm
Width 29 mm
Supply voltage limits 0.8-1.2 V AC
Signalling type steady
[Ui] rated insulation voltage 400 V (pollution degree 3) conforming to IEC 60947-1
Service life 40000 h at rated voltage and 25 °C
Connections - terminals screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Current consumption <= 20 mA
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.02 kg
Marking CE, CCC
Fixing center >= 30 x 40 mm (support panel) plastic - thickness: 2-6 mm, >= 30 x 40 mm (support panel) metal - thickness: 1-6 mm
Fixing mode fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m)
Terminals description ISO n°1 (X1-X2)PL
Height 29 mm
[Us] rated supply voltage 380...400 V
Environment
Overvoltage category class I conforming to IEC 536
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Vibration resistance 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
Shock resistance 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards IEC 50102, IEC 60529, IEC 60947-5-1, IEC 60947-1, GB 14048.5, GB 14048.1
Ambient air temperature for operation -25-70 °C
IK degree of protection IK05
Product certifications CCC, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.9 cm
Package 1 Width 2.9 cm
Package 1 Length 5.3 cm
Package 1 Weight 21.6 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 7.95 cm
Package 2 Width 22 cm
Package 2 Length 29.5 cm
Package 2 Weight 108 g
Unit Type of Package 3 3
Number of Units in Package 3 10
Package 3 Height 5.8 cm
Package 3 Width 6.4 cm
Package 3 Length 15.8 cm
Package 3 Weight 0.3 kg
Unit Type of Package 4 4
Number of Units in Package 4 160
Package 4 Height 15 cm
Package 4 Width 30 cm
Package 4 Length 40 cm
Package 4 Weight 5.8 kg
