SKU:

XA2EH042

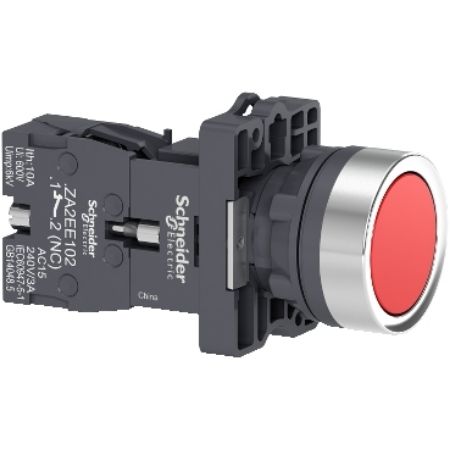

Complete push button, Easy Harmony XA2, plastic, flush, red, 22mm, push push, unmarked, 1NC

Old price: $93.39 INC GST
$23.35 INC GST
This product has a minimum quantity of 10
Available for Shipping : 24-Jul-2025
Product Selector
Complete push button, Easy Harmony XA2, plastic, flush, red, 22mm, push push, unmarked, 1NC
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Circularity Profile
Declaration of conformity
Environmental Disclosure
Instruction sheet
Image of product in real life situation
Product Page Link
Product Data Sheet
This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. It is a modular flush red pushbutton. This pushbutton operates with a spring return / impulse mechanism. This flush pushbutton provides an ergonomic interface for controlling machines. It has 1 NC contact with slow-break operation. This is a plastic pushbutton with a metallic-look ring design bezel. It is an IP65 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is clearly distinguishable visually at a distance due to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name XA2
Bezel material plastic
Fixing collar material plastic
Product or component type complete push-button
Range of product Easy Harmony XA2
Complementary
Protective treatment TC
Tightening torque 0.8-0.8 N.m
Depth 67.7 mm
Width 30 mm
Electrical reliability λ < 10exp(-8) at 24 V
Operating position any position
Type of operator push-push
Compatibility code XA2E
Mechanical durability 1000000 cycles
Operator profile red flush
Contact operation slow-break
[Ie] rated operational current 0.27 A at 250 V, DC-13, Q600, 3 A at 240 V, AC-15, A600
[Ui] rated insulation voltage 600 V conforming to IEC 60947-1
Sale per indivisible quantity 1
Contacts type and composition 1 NC
Connections - terminals Faston terminals, connection size: 6.3 mm, screw clamp terminal, >= 1 x 0.5 mm², screw clamp terminal, <= 1 x 2.5 mm², screw clamp terminal, <= 2 x 1.5 mm²
Electrical durability 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 , 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.04 kg
Cap/operator or lens colour red
Shape of signaling unit head round
[Ith] conventional free air thermal current 10 A
Mounting diameter 22.5 mm
Fixing mode fixing nut: 2-2.4 N.m
Fixing center >= 30 x 40 mm (panel) - thickness: 1-5 mm
Short-circuit protection 10 A gL fuse conforming to IEC 60269-1
Height 42 mm
Environment
Overvoltage category class I conforming to IEC 536
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Vibration resistance 10 gn (f= 40-500 Hz) conforming to IEC 60068-2-6
Shock resistance 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards IEC 60947-5-1, IEC 60947-1, GB 14048.5, GB 14048.1
Ambient air temperature for operation -25-55 °C
IK degree of protection IK03 conforming to IEC 60529
Product certifications CE, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 4.000 cm
Package 1 Length 7.000 cm
Package 1 Weight 56.000 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.860 kg
Unit Type of Package 3 3
Number of Units in Package 3 1600
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 101.760 kg

Related products

Tightening tool for fixing nut, Harmony XB5, plastic, black

ZB5AZ905
$19.22 INC GST $24.64 INC GST
View Detail
