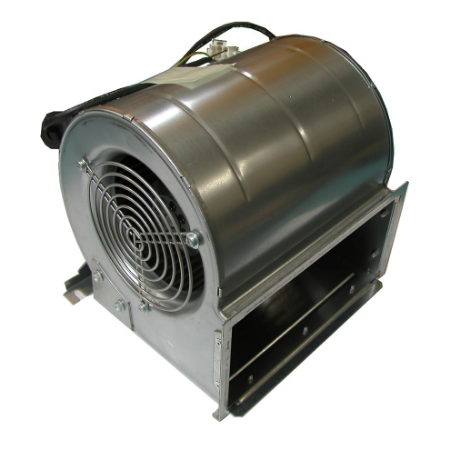

Picture of Wear part, fan kit heatsink, variable speed drive, Altivar 61, Altivar 71, Altivar Process 600 900, from 220 to 315kW
SKU:

VZ3V1212

Wear part, fan kit heatsink, variable speed drive, Altivar 61, Altivar 71, Altivar Process 600 900, from 220 to 315kW

$1,182.06 INC GST
Available for Shipping : 28-Jul-2025
Wear part, fan kit heatsink, variable speed drive, Altivar 61, Altivar 71, Altivar Process 600 900, from 220 to 315kW
  • Original Schneider Electric wear part
  • High quality construction
  • Limited Noise
  • Higher efficiency
  • Increase Drive lifetime
  • Reduce drive downtime possibility
Be the first to review this product
Manufacturer: Telemecanique
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This product is a wear part for Drive Altivar 61, Drive Altivar 71 and Drive Altivar Process 600, Altivar Process 900. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives from 220kw to 315kw and a rated voltage from 380V to 480V. This Fan increase the Drive life time. The quantity of Fan required depend on the drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 41cm (width) x 41cm (Length) x 34cm (Height) and weighs 7.454kg. This power fan is compatible with ATV630C22N4 to C31N4, ATV930C22N4, ATV930C22N4C to ATV930C31N4C . Electronic power fan for drive, with 1 unit for ATV630C22N4, 2 units for ATV630C25N4, and 3 units for ATV630C31N4. Electronic power fan for drive, with 1 unit for ATV930C22N4(C), 2 units for ATV930C25N4C, and 3 units for ATV930C31N4C Variable Speed Drives for pumps, fans or compressors up to 2600 kW. Variable Speed Drive for conveyors, cranes or mills up to 2600 kW. Drives for variable torque from 0.75 to 800 Kw. Drives for heavy duty industry from 0.37 to 630 kW.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part type fan kit
Range compatibility Altivar Process 600/900, Altivar 61/71
Product or component type fan
Accessory / separate part category cooling accessory
Complementary
Kit composition instruction sheet,  mounting bracket, fan
Product compatibility variable speed drive ATV930 wall mount 315-315 kW 380...480 V 3 per drive, variable speed drive ATV930 wall mount 250-250 kW 380...480 V 2 per drive, variable speed drive ATV930 wall mount 220-220 kW 380...480 V 1 per drive, variable speed drive ATV630 wall mount 315-315 kW 380...480 V 3 per drive, variable speed drive ATV630 wall mount 250-250 kW 380...480 V 2 per drive, variable speed drive ATV630 wall mount 220-220 kW 380...480 V 1 per drive, variable speed drive ATV61Q, variable speed drive ATV71Q, variable speed drive ATV71 Plus, variable speed drive ATV61 Plus, variable speed drive ATV71, variable speed drive ATV61
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 34.000 cm
Package 1 Width 41.000 cm
Package 1 Length 41.000 cm
Package 1 Weight 7.361 kg
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 105.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 107.500 kg
