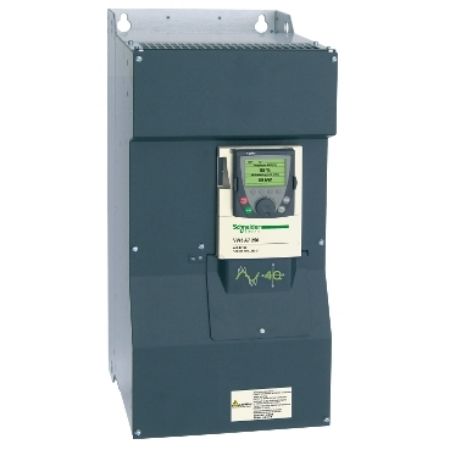

Picture of active infeed converter - 120 kW - 380...480 V
SKU:

VW3A7250

active infeed converter - 120 kW - 380...480 V

$26,980.80 INC GST
Available for Shipping : 16-Dec-2025
active infeed converter - 120 kW - 380...480 V
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name AIC
Range compatibility Altivar 71, Altivar 61
Assembly style built-in unit
Product specific application component of the Active Front End, energy regeneration, low harmonics
Rated power in W 120 kW
Type of cooling forced convection
Product compatibility ATV71H075N4...C20N4D DC with several variable speed drive on a common DC bus, ATV61H075N4...C25N4D DC with several variable speed drive on a common DC bus, ATV71HD90N4D 480 V AC with one variable speed drive, ATV61HC11N4D 480 V AC with one variable speed drive, ATV71HD90N4D 380...440 V AC with one variable speed drive, ATV61HC11N4D 380...440 V AC with one variable speed drive
Network number of phases 3 phases
[Us] rated supply voltage 380...480 V +/- 10 %
Network frequency 50/60 Hz
Complementary
Continuous output current 163 A at 480 V, 185 A at 400 V
Depth 377 mm
Width 310 mm
Operating position vertical +/- 10 degree
Max current 1.35 x nominal current (duration = 2 s), 1.20 x nominal current (duration = 60 s)
Compatibility code AIC
Maximum voltage drop at rated load <40 % at 480 V, <= 60 s,  <40 % at 440 V, <= 60 s,  <30 % at 380...400 V, <= 60 s
Communication port protocol Modbus, CANopen
Line current 160 A at 480 V, 177 A at 400 V
Input power 133 kW at 480 V, 123 kW at 400 V
Connector type male SUB-D 9 on RJ45 for CANopen, 1 RJ45 for Modbus
Net weight 60 kg
Option card communication bridge
Output voltage 770 V DC - supply: 480 V AC, 720 V DC - supply: 440 V AC, 650 V DC - supply: 380...400 V AC
Thermal losses 2250 W
Height 680 mm
Environment
Operating altitude 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without derating
IP degree of protection IP00
Ambient air temperature for storage -25-70 °C
Pollution degree 2 conforming to EN 61800-5-1
Relative humidity 0-95 %
Volume of cooling air 115 m3/h for control circuit, 400 m3/h for power circuit
Vibration resistance 0.6 gn (f= 10-200 Hz) conforming to EN/IEC 60068-2-6, 1.5 mm (f= 3-10 Hz) conforming to EN/IEC 60068-2-6
Environmental characteristic 3S2 conforming to EN 60721-3-3, 3C2 conforming to EN 60721-3-3, 3K3 conforming to EN/IEC 60721-3-3
Shock resistance 7 gn for 11 ms conforming to EN/IEC 60721-3-3
Ambient air temperature for operation -10-45 °C, 45-60 °C (with current derating of 2 % per °C)
Standards EN/IEC 61800-5-1
Air flow surface 500 cm²
Product certifications CSA (pending), UL (pending), CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 42.0 cm
Package 1 Width 53.0 cm
Package 1 Length 123.0 cm
Package 1 Weight 80.0 kg
