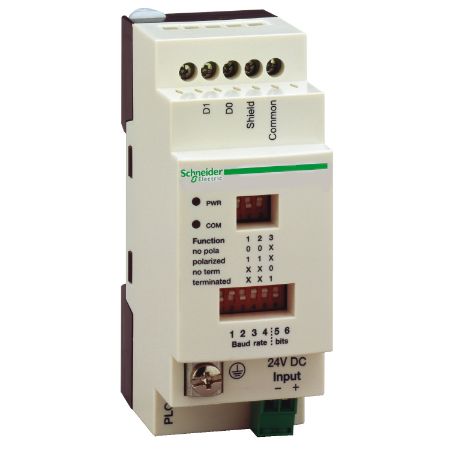

Picture of tap isolation box, Modicon M258, for PLC Twido, serial link, screw terminal block, 2 RJ45
SKU:

TWDXCAISO

tap isolation box, Modicon M258, for PLC Twido, serial link, screw terminal block, 2 RJ45

$450.12 INC GST
Available for Shipping : 29-Jul-2025
tap isolation box, Modicon M258, for PLC Twido, serial link, screw terminal block, 2 RJ45
Be the first to review this product
Manufacturer: Telemecanique
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of Twido range, an offer of connection accessories for RS485 serial link. This serial link tap isolation box is suitable for lines pre-polarized (2 R 620Ohm), RS485 line isolation and line end adaptor (RC 120Ohm, 1nF) applications. It is a tap isolation box with external supply of 24V DC. It is furnished with screw terminal block and 2 connectors RJ45 for electrical connection. It weighs 0.1kg. It supports 35mm symmetrical DIN rail mount. Modicon M258 logic controllers are designated to the machine builders (OEMs). Part of Modicon 30% saving time in assembly, wiring and commissioning.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination RS485 serial link
Accessory / separate part type tap isolation box
Product specific application line end adaptor (RC 120 Ohm, 1 nF), RS485 line isolation, lines prepolarised (2 R 620 Ohm)
Accessory / separate part category connection accessories
Accessory / separate part designation tap isolation box
Range of product Twido
Complementary
Supply circuit type DC
Range compatibility Modicon M238 logic controller, Twido programmable controller
Net weight 0.1 kg
Supply external
Mounting support 35 mm symmetrical DIN rail
Electrical connection 2 connectors RJ45 (for tap-off), 1 screw terminal block
[Us] rated supply voltage 24 V
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.6 cm
Package 1 Width 6.5 cm
Package 1 Length 12.0 cm
Package 1 Weight 156.0 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.191 kg
Unit Type of Package 3 3
Number of Units in Package 3 768
Package 3 Height 75 cm
Package 3 Width 120 cm
Package 3 Length 80 cm
Package 3 Weight 150 kg

Related products

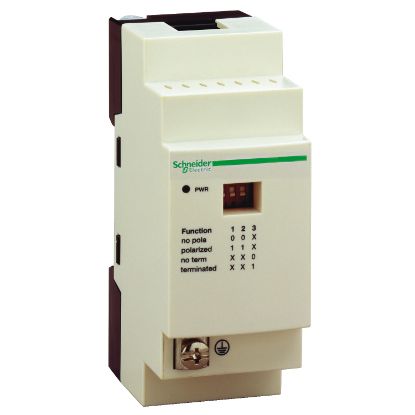

Picture of serial link tap junction box - for PLC Twido - 1 RJ45 - 2 RJ45
