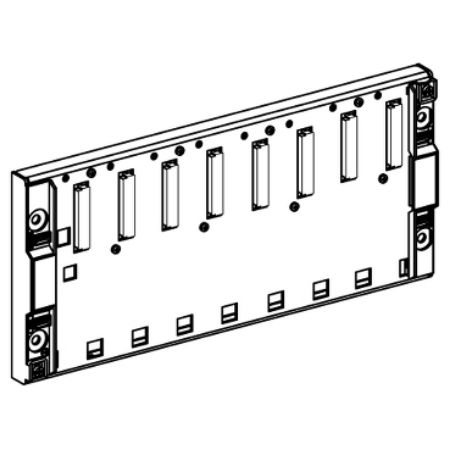

Picture of Non extendable rack, Modicon premium, for single rack configuration, 8 slots
SKU:

TSXRKY8

Non extendable rack, Modicon premium, for single rack configuration, 8 slots

$2,003.80 INC GST
Availability: Please contact our sales team on 1300 724 622.
Non extendable rack, Modicon premium, for single rack configuration, 8 slots
  • AS-Interface Bus I/O modules
  • Transparency of exchanges with sensor/actuator devices
  • The maximum number of modules per PLC station is 1, 2, 4 or 8, depending on the type of processor installed
  • An AS-Interface power supply is essential for powering the various devices on the line
  • It should preferably be placed near stations that consume a great deal of power
  • The AS-Interface cabling system consists of a master station and slave stations
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
User guide
Catalog
Instruction sheet
Quick start guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Product specific application for single rack configuration
Product or component type non-extendable rack
Range of product Modicon Premium Automation platform
Complementary
Product compatibility TSXPSY power supply, specific application module, TSXP57 processor, I/O module
Number of slots 8
Fixing mode by clips (35 mm symmetrical DIN rail), by 4 M6 screws (panel)
Net weight 1.75 kg
Marking CE
Environment
Operating altitude 0...2000 m
IP degree of protection IP20
Protective treatment TC
Relative humidity 5-95 % without condensation for storage, 10-95 % without condensation for operation
Ambient air temperature for storage -25-70 °C
Pollution degree 2
Standards CSA C22.2 No 213 Class I Division 2 Group C, CSA C22.2 No 213 Class I Division 2 Group A, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group D, IEC 61131-2, 89/336/EEC, UL 508, 92/31/EEC, 93/68/EEC, CSA C22.2 No 213 Class I Division 2 Group B, 73/23/EEC
Ambient air temperature for operation 0-60 °C
Product certifications ABS, RMRS, RINA, DNV, GL, LR, BV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 21.0 cm
Package 1 Length 41.5 cm
Package 1 Weight 1.607 kg
