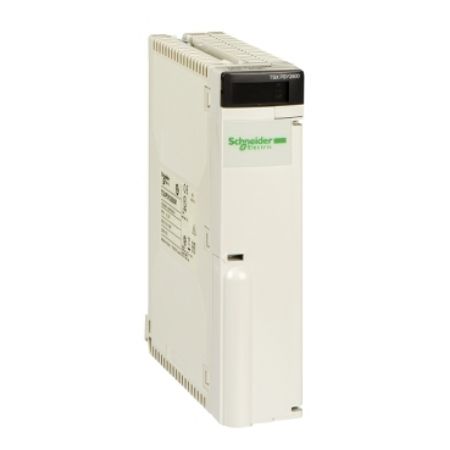

Picture of Power supply module, Modicon Premium, input current of 1500mA, secondary power of 50W, 19.2 to 60VDC
SKU:

TSXPSY5520M

Power supply module, Modicon Premium, input current of 1500mA, secondary power of 50W, 19.2 to 60VDC

$6,220.81 INC GST
Availability: Please contact our sales team on 1300 724 622.
Power supply module, Modicon Premium, input current of 1500mA, secondary power of 50W, 19.2 to 60VDC
  • The Modbus serial link is used for master/slave architectures
  • The bus consists of a master station and slave stations
  • /Premium PLCs provide various ways of connecting to the Modbus serial link
  • PCMCIA card can be used for direct point-to-point links or links via Modem.
  • This type of card is used for a multidrop link
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Quick start guide
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Product or component type power supply module
Range of product Modicon Premium Automation platform
Complementary
Primary voltage 24...48 V DC 19.2...60 V
Inrush current 15 A 48 V, 15 A 24 V
Module format double
Local signalling 1 LED (red) for battery fault (BAT), 1 LED (green) for presence of voltages (OK)
Input current <= 3000 mA 24 V, <= 1500 mA 48 V
Secondary power 35 W 5 V DC, 19 W 24 V DC
Net weight 0.89 kg
Marking CE
Insulation resistance >= 10 MOhm primary/secondary, >= 10 MOhm primary/ground
Protection type short-circuit protection secondary circuit, overvoltage protection secondary circuit, overload protection secondary circuit, internal fuse 5 A 5 x 20 mm time-delayed primary circuit
Current at secondary voltage 7 A 5 V DC, 0.8 A 24 V DC relay power supply
I²t on activation 55 A².s 48 V, 50 A².s 24 V
Total useful secondary power 50 W
It on activation 7 A.s 24 V, 6 A.s 48 V
Environment
Dielectric strength 2000 V primary/secondary, 2000 V primary/earth
Operating altitude 0...2000 m
IP degree of protection IP20
Protective treatment TC
Relative humidity 5-95 % without condensation for storage, 10-95 % without condensation for operation
Ambient air temperature for storage -25-70 °C
Pollution degree 2
Immunity to microbreaks 1 ms
Standards CSA C22.2 No 213 Class I Division 2 Group A, CSA C22.2 No 213 Class I Division 2 Group B, IEC 61131-2, CSA C22.2 No 142, 92/31/EEC, 73/23/EEC, UL 508, 89/336/EEC, CSA C22.2 No 213 Class I Division 2 Group C, 93/68/EEC, CSA C22.2 No 213 Class I Division 2 Group D
Ambient air temperature for operation 0-60 °C
Product certifications BV, GL, RINA, ABS, LR, DNV, RMRS
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.5 cm
Package 1 Width 18.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 1.02 kg
