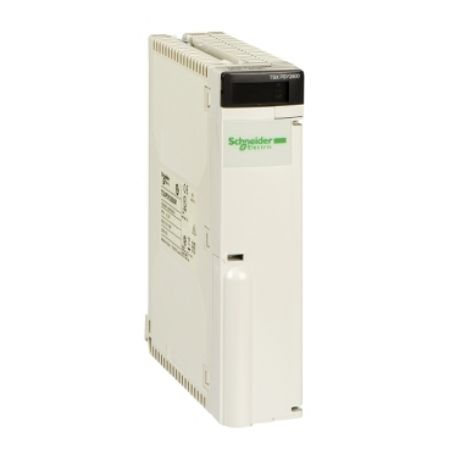

Picture of Power supply module, Modicon Premium, input current of 300mA, secondary power of 26W, 85 to 264VAC
SKU:

TSXPSY2600M

Power supply module, Modicon Premium, input current of 300mA, secondary power of 26W, 85 to 264VAC

$3,357.30 INC GST
Availability: Please contact our sales team on 1300 724 622.
Power supply module, Modicon Premium, input current of 300mA, secondary power of 26W, 85 to 264VAC
  • The Modbus serial link is used for master/slave architectures
  • The bus consists of a master station and slave stations
  • /Premium PLCs provide various ways of connecting to the Modbus serial link
  • PCMCIA card can be used for direct point-to-point links or links via Modem.
  • This type of card is used for a multidrop link
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalog
Declaration of conformity
Quick start guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Product or component type power supply module
Range of product Modicon Premium Automation platform
Complementary
Primary voltage 100...240 V AC 85...264 V
Inrush current 75 A 240 V, 37 A 100 V
Module format standard
Local signalling 1 LED (red) for battery fault (BAT), 1 LED (green) for presence of voltages (OK), 1 LED (green) for presence of sensor voltage (24V)
Input current 500 mA 100 V, 300 mA 240 V
Secondary power 25 W 5 V DC, 15 W 24 V DC
Net weight 0.51 kg
Marking CE
Network frequency limits 47-63 Hz
Insulation resistance >= 100 MOhm primary/secondary, >= 100 MOhm primary/ground
Protection type short-circuit protection secondary circuit, overvoltage protection secondary circuit, overload protection secondary circuit, internal fuse 4 A 5 x 20 mm time-delayed primary circuit
Current at secondary voltage 5 A 5 V DC, 0.6 A 24 V DC relay power supply, 0.5 A 24 V DC sensor power supply
I²t on activation 2.6 A².s 240 V, 0.63 A².s 100 V
Total useful secondary power 26 W
It on activation 0.067 A.s 240 V, 0.034 A.s 100 V
Network frequency 50/60 Hz
Environment
Dielectric strength 2000 V primary/secondary, 2000 V primary/earth
Operating altitude 0...2000 m
IP degree of protection IP20
Protective treatment TC
Relative humidity 5-95 % without condensation for storage, 10-95 % without condensation for operation
Ambient air temperature for storage -25-70 °C
Pollution degree 2
Immunity to microbreaks 10 ms
Standards CSA C22.2 No 213 Class I Division 2 Group C, 73/23/EEC, CSA C22.2 No 213 Class I Division 2 Group D, 93/68/EEC, 92/31/EEC, CSA C22.2 No 213 Class I Division 2 Group B, 89/336/EEC, UL 508, IEC 61131-2, CSA C22.2 No 213 Class I Division 2 Group A, CSA C22.2 No 142
Ambient air temperature for operation 0-60 °C
Product certifications LR, DNV, ABS, GL, RINA, BV, RMRS
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.0 cm
Package 1 Width 18.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 619.0 g
