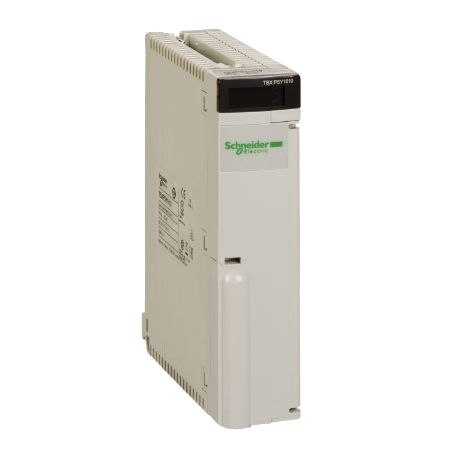

Picture of Power supply module, Modicon Premium, input current 1500mA, secondary power of 30W, 19.2 to 30VDC
SKU:

TSXPSY1610M

Power supply module, Modicon Premium, input current 1500mA, secondary power of 30W, 19.2 to 30VDC

$2,371.93 INC GST
Availability: Please contact our sales team on 1300 724 622.
Power supply module, Modicon Premium, input current 1500mA, secondary power of 30W, 19.2 to 30VDC
  • The Modbus serial link is used for master/slave architectures
  • The bus consists of a master station and slave stations
  • /Premium PLCs provide various ways of connecting to the Modbus serial link
  • PCMCIA card can be used for direct point-to-point links or links via Modem.
  • This type of card is used for a multidrop link
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalog
Quick start guide
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Product or component type power supply module
Range of product Modicon Premium Automation platform
Complementary
Primary voltage 24 V DC 19.2...30 V
Inrush current 100 A 24 V
Module format standard
Local signalling 1 LED (red) for battery fault (BAT), 1 LED (green) for presence of voltages (OK)
Input current <= 1500 mA 24 V
Secondary power 15 W 5 V DC, 15 W 24 V DC
Net weight 0.54 kg
Marking CE
Protection type short-circuit protection secondary circuit, overvoltage protection secondary circuit, overload protection secondary circuit, internal fuse 3.5 A 5 x 20 mm time-delayed primary circuit
Current at secondary voltage 3 A 5 V DC, 0.6 A 24 V DC relay power supply
I²t on activation 12.5 A².s
Total useful secondary power 30 W
It on activation 0.2 A.s
Environment
Dielectric strength 2000 V primary/secondary, 2000 V primary/earth
Operating altitude 0...2000 m
IP degree of protection IP20
Protective treatment TC
Relative humidity 5-95 % without condensation for storage, 10-95 % without condensation for operation
Ambient air temperature for storage -25-70 °C
Pollution degree 2
Immunity to microbreaks 1 ms
Standards 89/336/EEC, CSA C22.2 No 213 Class I Division 2 Group D, 73/23/EEC, 92/31/EEC, CSA C22.2 No 213 Class I Division 2 Group A, UL 508, IEC 61131-2, CSA C22.2 No 213 Class I Division 2 Group C, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group B, 93/68/EEC
Ambient air temperature for operation 0-60 °C
Product certifications DNV, GL, BV, RINA, ABS, LR, RMRS
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 18.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 619.0 g
