SKU:

TSXPAY262

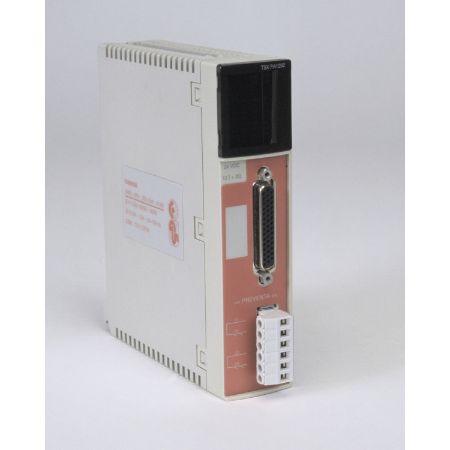

Preventa safety module, Modicon Premium, 19.2 to 30VDC, 30mA, 5W

$6,405.98 INC GST
Available for Shipping : 19-Aug-2025
Preventa safety module, Modicon Premium, 19.2 to 30VDC, 30mA, 5W
  • Memory up to 128k words
  • Multi-task application software with event-triggered functions
  • Several sensor/actuator Bus networks and Ethernet TCP/IP
  • Total protection of user know-how, data, PLC peripherals
  • The automation platform designed to enhance your system’s performance
Manufacturer: Schneider Electric

Products specifications

Attribute name Attribute value
Main
Product or component type Preventa safety module
Range of product Modicon Premium Automation platform
Complementary
Discrete input number 12 for emergency stop or limit switch discrete inputs conforming to IEC 1131 Type 1, 1 for reset PB monitoring input conforming to IEC 1131 Type 1, 1 for reset PB input conforming to IEC 1131 Type 1, 1 for feedback loop input conforming to IEC 1131 Type 1, 1 for double or single contact selection input conforming to IEC 1131 Type 1
[Us] rated supply voltage 24 V DC
Safety outputs 2 NO safety relay AGCDO gold plated volt free output
Activation threshold < 20 V
Module format standard
Isolation between input and earth 500 Vrms 50/60 Hz for 60 s
Local signalling 28 LEDs for diagnostic of safety system
Cable cross section 1.5-1.5 mm² with cable end safety output circuit, 0.2-2.5 mm² without cable end safety output circuit
Isolation between output and earth 1500 Vrms 50/60 Hz for 60 s, 300 V conforming to DIN VDE 0110 part 2
Discrete input logic positive
Supply voltage limits 19.2-30 V
Maximum power dissipation in W 5 W
Isolation voltage 4000 V III 2
Net weight 0.43 kg
Rated power in VA 60 VA 24 V AC-15 inductive, 550 VA 220 V AC-15 inductive, 280 VA 110 V AC-15 inductive, 120 VA 48 V AC-15 inductive
Current consumption <= 200 mA at 24 V DC, < 150 mA at 5 V DC
[Ithe] conventional enclosed thermal current 2.5 A
Inrush current 0.5 A
[Ue] rated operational voltage 19...250 V AC relay output, 17...127 V DC relay output
Response time on output < 12 ms
Short-circuit protection 4 A gG external conforming to IEC 947-5-1 on safety relay outputs, 1 A gG external conforming to IEC 947-5-1 on power supply
Minimum output current 30 mA
Safety acquisition read status of the 24 inputs, read the safety outputs control, read enable inputs, monitor external power supply of the module, read feedback loop
Electrical connection 1 connector SUB-D with 44 pins for connecting the safety system input, 1 connector removable screw terminal block with 6 pins for connecting the safety output
Rated power in W 60 W 24 V DC-13 inductive 100 ms
Environment
Ambient air temperature for storage -25-70 °C
Standards CSA C22.2 specific requirements (PLC), IEC 61508 SIL 3 machine safety parts of control systems, ISO 13849-1 category 4 machine safety parts of control systems, UL 508 specific requirements (PLC), ISO 13850 emergency stop equipment, EN/ISO 12100 machine electrical equipment, EN/IEC 61131-2 specific requirements (PLC), EN/IEC 60204-1 machine electrical equipment, EN 954 machine safety parts of control systems
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for operation 0-60 °C with fan module, 0-40 °C without fan
Product certifications UL, CSA, BG
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 18.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 563.9 g
