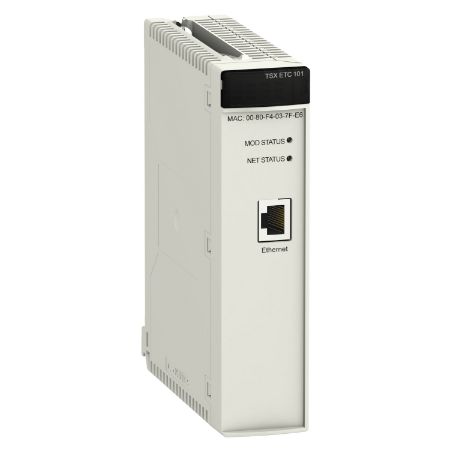

Picture of Ethernet communication module, Modicon Premium, EtherNet/IP, Modbus TCP, 400mA at 5VDC, 10/100 Mbit/s
SKU:

TSXETC101

Ethernet communication module, Modicon Premium, EtherNet/IP, Modbus TCP, 400mA at 5VDC, 10/100 Mbit/s

$10,561.28 INC GST
Available for Shipping : 07-Sep-2025
Ethernet communication module, Modicon Premium, EtherNet/IP, Modbus TCP, 400mA at 5VDC, 10/100 Mbit/s
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Declaration of conformity
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Local signalling 1 LED (amber) for configuration status (STS), 1 LED (amber) for Ethernet activity (ACT), 1 LED (green/red) for status of the module (Mod Status), 1 LED (red) for error condition (ERR), 1 LED (green) for backplane communication status (RUN), 1 LED (green/red) for network communication status (Net Status)
Transmission rate 10/100 Mbit/s with automatic recognition
Communication service SOAP XML Web (client/server), Quality of Service (QoS), CIP Explicit messaging (server and client messaging), SNMP agent, DHCP/BootP server, Modbus TCP messaging, FDR server, CIP implicit messaging (I/O communication)
Product or component type Ethernet communication module
Supply via the power supply of the rack
Physical interface RJ45 - 10BASE-T/100BASE-TX 1 twisted pair
Range of product Modicon Premium Automation platform
Complementary
Web server transparent ready class B30
Web services rack viewer, Data Editor (via PC terminal)
Module format standard
Product compatibility Unity Pro (>= V5.0)
Communication port protocol Modbus TCP, EtherNet/IP
Net weight 0.34 kg
Marking CE
Current consumption 400 mA 5 V DC
Maximum number of connections 128
Environment
IP degree of protection IP20
Relative humidity 10-95 % at 60-60 °C without condensation
Standards UL 508, CSA C22.2 No 142
Ambient air temperature for operation 0-60 °C
Product certifications ODVA, cUL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 18.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 414.0 g
