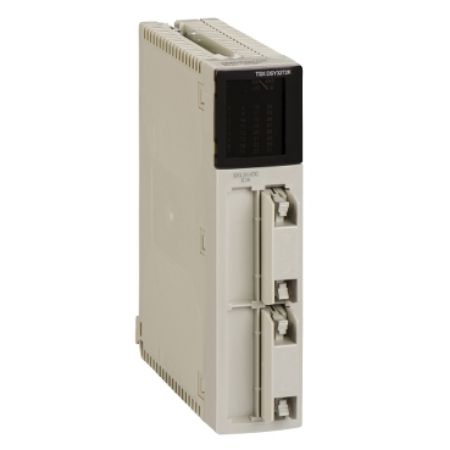

Picture of Discrete output module, Modicon Premium, 64 outputs, 2.4W, overvoltage protection by transil diode
SKU:

TSXDSY64T2K

Discrete output module, Modicon Premium, 64 outputs, 2.4W, overvoltage protection by transil diode

$5,332.80 INC GST
Availability: Please contact our sales team on 1300 724 622.
Discrete output module, Modicon Premium, 64 outputs, 2.4W, overvoltage protection by transil diode
  • Output module with 64-channel screw terminal block
  • The discrete I/O module terminal blocks have a device for automatically transferring the coding when first used
  • The output overvoltage protection is provided by transil diode.
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
Declaration of conformity
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Discrete output number 64
Discrete output voltage 24 V DC positive conforming to EN/IEC 61131-2 19...30 V
Product or component type discrete output module
Range of product Modicon Premium Automation platform
Discrete output type solid state protected
Complementary
Reverse polarity protection reverse mounted diode
Product compatibility Dial and Power
Module format standard
Minimum load impedance 220 W at state 1
Short-circuit protection automatic trip
[Ures] residual voltage 1.5 V
Maximum leakage current 0.1 mA, at 30 V
Paralleling of outputs yes : 3 maximum
Net weight 0.36 kg
Response time 1.2 ms
Output overvoltage protection by transil diode
Marking CE
Maximum tungsten load 1.2 W
Output overload protection automatic trip
Current consumption 155 mA at 5 V DC
Insulation resistance > 10 MOhm 500 V
Electrical connection 4 connectors HE-10
Current per channel 0.1 A
Maximum current per module 5 A
Power dissipation (2.4 W + 0.1 W x No of outputs)
Environment
Operating altitude 0...2000 m
IP degree of protection IP20
Protective treatment TC
Relative humidity 5-95 % without condensation for storage, 10-95 % without condensation for operation
Ambient air temperature for storage -25-70 °C
Dielectric strength 1500 V 50/60 Hz 60 s
Pollution degree 2
Standards 73/23/EEC, CSA C22.2 No 213 Class I Division 2 Group D, 92/31/EEC, CSA C22.2 No 213 Class I Division 2 Group B, CSA C22.2 No 142, IEC 61131-2, 89/336/EEC, 93/68/EEC, CSA C22.2 No 213 Class I Division 2 Group C, CSA C22.2 No 213 Class I Division 2 Group A, UL 508
Ambient air temperature for operation 0-60 °C
Product certifications LR, RMRS, GL, ABS, BV, DNV, RINA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 18.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 503.0 g
