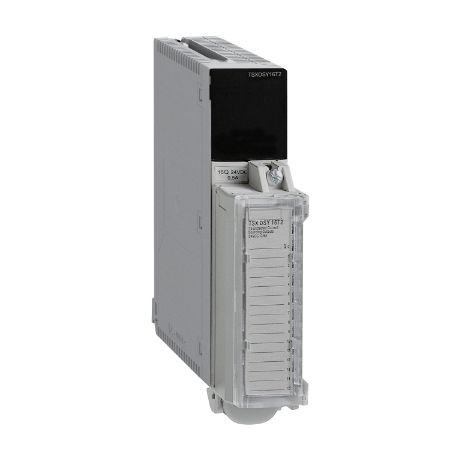

Picture of Discrete output module, Modicon Premium, 16 outputs, 1.1W, overvoltage protection by transil diode
SKU:

TSXDSY16T2

Discrete output module, Modicon Premium, 16 outputs, 1.1W, overvoltage protection by transil diode

$2,587.97 INC GST
Availability: Please contact our sales team on 1300 724 622.
Discrete output module, Modicon Premium, 16 outputs, 1.1W, overvoltage protection by transil diode
  • Output module with 16-channel screw terminal block
  • The discrete I/O module terminal blocks have a device for automatically transferring the coding when first used
  • The output overvoltage protection is provided by transil diode.
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalog
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Discrete output number 16
Discrete output voltage 24 V DC positive conforming to EN/IEC 61131-2 19...30 V
Discrete output current 0.5 A
Product or component type discrete output module
Range of product Modicon Premium Automation platform
Discrete output type solid state protected
Complementary
Reverse polarity protection reverse mounted diode
Module format standard
Minimum load impedance 48 W
Preactuator voltage detection threshold 16 V
Short-circuit protection electronic tripping on reactivation
[Ures] residual voltage 1.2 V
Maximum leakage current 0.5 mA at state 0
Net weight 0.34 kg
Response time 1.2 ms
Output overvoltage protection by transil diode
Marking CE
Output overload protection electronic tripping on reactivation
Current consumption 80 mA at 5 V DC
Insulation resistance > 10 MOhm 500 V
Electrical connection screw terminal block
Current per channel 0.625 A
Switching frequency 0.5/LI² Hz
Maximum current per module 7 A
Power dissipation (1.1 W + 0.75 W x No of outputs x current per module)
Environment
Operating altitude 0...2000 m
IP degree of protection IP20
Protective treatment TC
Relative humidity 5-95 % without condensation for storage, 10-95 % without condensation for operation
Ambient air temperature for storage -25-70 °C
Dielectric strength 1500 V 50/60 Hz 60 s
Pollution degree 2
Standards 92/31/EEC, 73/23/EEC, CSA C22.2 No 213 Class I Division 2 Group B, IEC 61131-2, UL 508, CSA C22.2 No 213 Class I Division 2 Group A, 89/336/EEC, CSA C22.2 No 213 Class I Division 2 Group D, 93/68/EEC, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group C
Ambient air temperature for operation 0-60 °C
Product certifications LR, RINA, ABS, BV, GL, RMRS, DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 18.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 453.0 g
