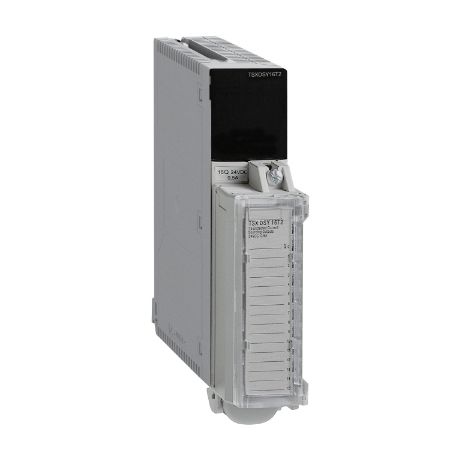

Picture of Discrete output module, Modicon Premium, 16 outputs, 0.25W, overvoltage protection by DC/AC inductive
SKU:

TSXDSY16R5

Discrete output module, Modicon Premium, 16 outputs, 0.25W, overvoltage protection by DC/AC inductive

$2,036.87 INC GST
Available for Shipping : 12-Aug-2025
Discrete output module, Modicon Premium, 16 outputs, 0.25W, overvoltage protection by DC/AC inductive
  • Output module with 16-channel terminal block
  • The discrete I/O module terminal blocks have a device for automatically transferring the coding when first used
  • This module is equipped with a removable 16 post screwed connection terminal block allowing outputs to be connected
  • Built-in protection against short-circuits & overloads
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalog
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Discrete output number 16
Discrete output voltage 24...240 V AC conforming to EN/IEC 61131-2 20...264 V, 12...24 V DC conforming to EN/IEC 61131-2 10...34 V
Product or component type discrete output module
Range of product Modicon Premium Automation platform
Discrete output type relay not protected
Complementary
Module format standard
Short-circuit protection 1 external fuse per channel or group of channel fast blow
Contacts type and composition 1 NO
Electrical durability 1000000 cycles AC-12 50 VA 48 V resistive, 1000000 cycles AC-12 220 VA 220 V resistive, 1000000 cycles AC-12 110 VA 110 V resistive, 100000 cycles AC-15 220 VA 220 V inductive, 100000 cycles AC-14 220 VA 220 V inductive, 300000 cycles DC-12 40 W 24 V resistive, 700000 cycles AC-12 50 VA 24 V resistive, 2000000 cycles DC-3 10 W 24 V inductive, 5000000 cycles AC-15 10 VA 48 V inductive, 5000000 cycles AC-15 10 VA 220 V inductive, 5000000 cycles AC-15 10 VA 110 V inductive, 5000000 cycles AC-14 10 VA 48 V inductive, 5000000 cycles AC-14 10 VA 220 V inductive, 5000000 cycles AC-14 10 VA 110 V inductive, 500000 cycles AC-15 24 VA 24 V inductive, 500000 cycles AC-14 24 VA 24 V inductive, 500000 cycles AC-12 220 VA 110 V resistive, 500000 cycles AC-12 110 VA 48 V resistive, 1000000 cycles DC-3 24 W 24 V inductive, 3000000 cycles AC-15 50 VA 220 V inductive, 3000000 cycles AC-14 50 VA 220 V inductive, 2000000 cycles AC-15 24 VA 48 V inductive, 2000000 cycles AC-14 24 VA 48 V inductive, 1500000 cycles AC-15 50 VA 110 V inductive, 1500000 cycles AC-14 50 VA 110 V inductive, 150000 cycles AC-15 110 VA 110 V inductive, 150000 cycles AC-14 110 VA 110 V inductive, 1000000 cycles AC-15 110 VA 220 V inductive, 1000000 cycles AC-14 110 VA 220 V inductive, 1000000 cycles DC-12 24 W 24 V resistive
Net weight 0.38 kg
[Ith] conventional free air thermal current 3 A
Response time < 8 ms (activation), < 10 ms (deactivation)
Output overvoltage protection AC inductive, by RC circuit MOV (ZNO) on each preactuator, DC inductive, by discharge diode on each preactuator
Marking CE
Output overload protection 1 external fuse per channel or group of channel fast blow
Current consumption 80 mA at 5 V DC, 135 mA at 24 V DC rack
Insulation resistance > 10 MOhm 500 V
Electrical connection screw terminal block
Power dissipation (0.25 W + 0.2 W x No of outputs at state 1)
Environment
Operating altitude 0...2000 m
IP degree of protection IP20
Protective treatment TC
Relative humidity 5-95 % without condensation for storage, 10-95 % without condensation for operation
Ambient air temperature for storage -25-70 °C
Dielectric strength 2000 V 50/60 Hz 60 s
Pollution degree 2
Standards 93/68/EEC, CSA C22.2 No 213 Class I Division 2 Group D, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group A, CSA C22.2 No 213 Class I Division 2 Group C, 89/336/EEC, 92/31/EEC, CSA C22.2 No 213 Class I Division 2 Group B, UL 508, IEC 61131-2, 73/23/EEC
Ambient air temperature for operation 0-60 °C
Product certifications DNV, GL, RMRS, ABS, LR, RINA, BV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 18.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 482.0 g
