Picture of discrete output module Modicon Premium - 8 O relay
SKU:

TSXDSY08R5A

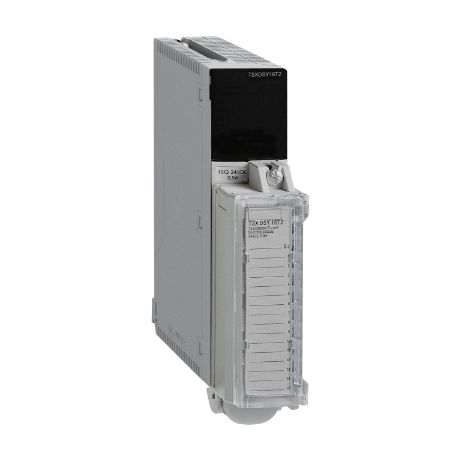

discrete output module Modicon Premium - 8 O relay

$2,865.72 INC GST
Available for Shipping : 14-Aug-2025
discrete output module Modicon Premium - 8 O relay
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
User guide
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Discrete output number 8
Discrete output voltage 24...48 V DC conforming to EN/IEC 61131-2 19...60 V, 24...240 V AC conforming to EN/IEC 61131-2 20...264 V
Product or component type discrete output module
Range of product Modicon Premium Automation platform
Discrete output type relay protected
Complementary
Module format standard
Short-circuit protection 6.3 A, interchangeable fuse per common fast blow
Contacts type and composition 2 x 2 C/O + 2 x 2 NO
Electrical durability 100000 cycles AC-14 440 VA 220...240 V inductive, 300000 cycles DC-12 50 W 24 V resistive, 300000 cycles DC-12 100 W 48 V resistive, 2000000 cycles DC-3 24 W 48 V inductive, 2000000 cycles DC-3 10 W 24 V inductive, 1000000 cycles DC-3 50 W 48 V inductive, 700000 cycles AC-12 100 VA 24 V resistive, 5000000 cycles AC-15 20 VA 48 V inductive, 5000000 cycles AC-14 20 VA 48 V inductive, 500000 cycles AC-15 50 VA 24 V inductive, 1000000 cycles DC-3 24 W 24 V inductive, 500000 cycles AC-14 50 VA 24 V inductive, 500000 cycles AC-12 440 VA 100...120 V resistive, 500000 cycles AC-12 200 VA 48 V resistive, 3000000 cycles AC-15 110 VA 220...240 V inductive, 3000000 cycles AC-14 110 VA 220...240 V inductive, 2000000 cycles AC-15 50 VA 48 V inductive, 2000000 cycles AC-14 50 VA 48 V inductive, 1500000 cycles AC-15 110 VA 100...120 V inductive, 1500000 cycles AC-14 110 VA 100...120 V inductive, 150000 cycles AC-15 220 VA 100...120 V inductive, 1000000 cycles DC-12 50 W 48 V resistive, 150000 cycles AC-14 220 VA 100...120 V inductive, 10000000 cycles AC-15 20 VA 220...240 V inductive, 10000000 cycles AC-15 20 VA 100...120 V inductive, 10000000 cycles AC-14 20 VA 100...120 V inductive, 1000000 cycles AC-15 220 VA 220...240 V inductive, 1000000 cycles AC-14 220 VA 220...240 V inductive, 1000000 cycles AC-12 440 VA 220...240 V resistive, 1000000 cycles AC-12 220 VA 100...120 V resistive, 1000000 cycles AC-12 100 VA 48 V resistive, 100000 cycles AC-15 440 VA 220...240 V inductive, 1000000 cycles DC-12 24 W 24 V resistive
Net weight 0.42 kg
[Ith] conventional free air thermal current 5 A
Response time < 15 ms (deactivation), < 10 ms (activation)
Output overvoltage protection RC circuit and Ge-Mov
Marking CE
Output overload protection 6.3 A, interchangeable fuse per common fast blow
Current consumption 80 mA at 24 V DC rack, 55 mA at 5 V DC
Insulation resistance > 10 MOhm 500 V
Electrical connection screw terminal block
Power dissipation (0.25 W + 0.24 W x No of outputs at state 1)
Environment
Operating altitude 0...2000 m
IP degree of protection IP20
Protective treatment TC
Relative humidity 5-95 % without condensation for storage, 10-95 % without condensation for operation
Ambient air temperature for storage -25-70 °C
Dielectric strength 2000 V 50/60 Hz 60 s
Pollution degree 2
Standards CSA C22.2 No 213 Class I Division 2 Group C, UL 508, IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group B, 89/336/EEC, 92/31/EEC, CSA C22.2 No 213 Class I Division 2 Group A, 93/68/EEC, 73/23/EEC, CSA C22.2 No 213 Class I Division 2 Group D
Ambient air temperature for operation 0-60 °C
Product certifications RINA, GL, RMRS, BV, ABS, LR, DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 18.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 554.0 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.432 kg
