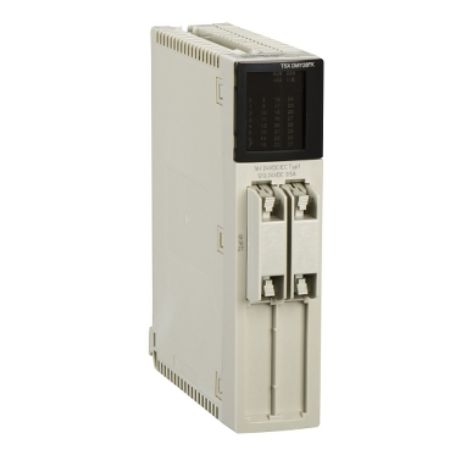

Picture of discrete I/O module Modicon Premium - 16 I 24 V DC - 12 O solid state
SKU:

TSXDMY28RFK

discrete I/O module Modicon Premium - 16 I 24 V DC - 12 O solid state

$5,268.52 INC GST
Availability: Please contact our sales team on 1300 724 622.
discrete I/O module Modicon Premium - 16 I 24 V DC - 12 O solid state
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
User guide
Catalog
Quick start guide
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Discrete input number 16 current sink fast input conforming to IEC 1131-2 Type 1
Input voltage 24 V 3.5 mA DC
Discrete I/O number 28
Input logic positive
Product or component type discrete I/O modules
Range of product Modicon Premium Automation platform
Complementary
Voltage state 1 guaranteed >= 11 V
Reverse polarity protection reversed diode
Maximum leakage current 1 mA at state 0
[Ures] residual voltage 1.2 V at state 1
Maximum tungsten load <6 W for solid state output
Input compatibility 2-wire/3-wire proximity sensor
Module format standard
Maximum output current 0.5 A by channel, 4 A by module
Output voltage limits 19...30 V
Preactuator voltage detection threshold 16 V
Discrete output number 12
Current state 1 guaranteed >= 3 mA
Paralleling of inputs yes
Minimum load impedance 48 W
Insulation resistance > 10 MOhm 500 V DC<LineBreak/>
Voltage state 0 guaranteed <= 5 V
Current state 0 guaranteed <= 1.5 mA
Output overvoltage protection by transil diode
Current consumption 75 mA at 24 V DC, 300 mA at 5 V DC
Filter time 0.1 to 7.5 ms by configuration, 4 ms by default
Electrical connection 2 connectors HE-10
Response time on output 0.6 ms
Output voltage 24 V 0.5 A
Switching frequency 0.5/LI² Hz
Discrete output type reflex or time delayed
Power dissipation 1.2 W + 0.1 x number of input at 1
Sensor power supply 19-30 V
Environment
Dielectric strength 1500 V 50/60 Hz for 1 minute
Operating altitude <= 2000 m
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -25-70 °C
Derating factor 60 % of the maximum current of the module at 60 °C solid state output, 60 % of inputs at state 1 at 60 °C fast input
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 18.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 490.0 g
