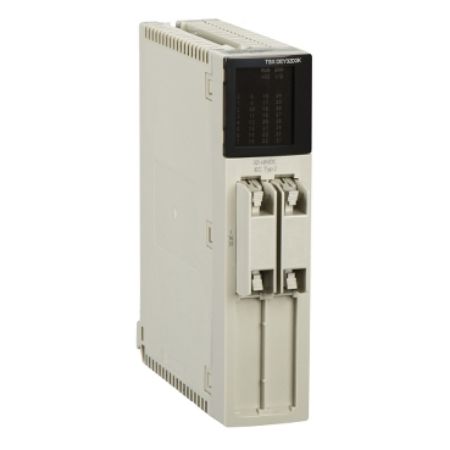

Picture of discrete input module Modicon Premium - 32 I 48 V DC
SKU:

TSXDEY32D3K

discrete input module Modicon Premium - 32 I 48 V DC

$4,514.40 INC GST
Availability: Please contact our sales team on 1300 724 622.
discrete input module Modicon Premium - 32 I 48 V DC
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
User guide
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Discrete input number 32 current sink isolated conforming to EN/IEC 61131-2 type 2
Discrete input current 7 mA
Sensor power supply 38-60 V
Input compatibility with 2-wire/3-wire proximity sensors conforming to EN/IEC 60947-5-2
Product or component type discrete input module
Discrete input voltage 48 V DC positive
Range of product Modicon Premium Automation platform
Complementary
Module format standard
Electrical connection HE-10 connector
Response time <= 7 ms, 4 ms
Current state 0 guaranteed <= 2 mA
Voltage state 1 guaranteed >= 30 V
Voltage state 0 guaranteed <= 10 V
Net weight 0.31 kg
Current state 1 guaranteed >= 6.5 mA
Marking CE
Insulation resistance < 10 MOhm 500 V DC
Current consumption 275 mA at 24 V DC, 140 mA at 5 V DC
Power dissipation (2 W + 0.1 W x No of channels used)
Input impedance 6300 Ohm at state 1
Environment
Operating altitude 0...2000 m
IP degree of protection IP20
Protective treatment TC
Relative humidity 5-95 % without condensation for storage, 10-95 % without condensation for operation
Ambient air temperature for storage -25-70 °C
Dielectric strength 1500 V AC at 50/60 Hz
Pollution degree 2
Standards EN/IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group C, 89/336/EEC, 93/68/EEC, UL 508, CSA C22.2 No 213 Class I Division 2 Group B, CSA C22.2 No 213 Class I Division 2 Group A, CSA C22.2 No 213 Class I Division 2 Group D, 92/31/EEC, IEC 60664, 73/23/EEC
Ambient air temperature for operation 0-60 °C
Product certifications RINA, DNV, LR, RMRS, BV, ABS, GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 18.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 469.0 g
