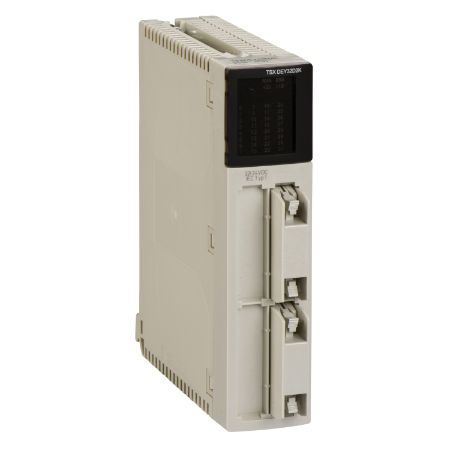

Picture of Discrete input module, Modicon Premium, 32 inputs, compatible with 2/3 wires proximity sensors, 1W
SKU:

TSXDEY32D2K

Discrete input module, Modicon Premium, 32 inputs, compatible with 2/3 wires proximity sensors, 1W

$2,930.40 INC GST
Availability: Please contact our sales team on 1300 724 622.
Discrete input module, Modicon Premium, 32 inputs, compatible with 2/3 wires proximity sensors, 1W
  • Input module with 32- channel connector
  • Comprises of 16 motor starters with 2 splitter boxes
  • HE 10 connectors are used for direct wire-to-wire connection between I/O of modules with connectors and the sensors
  • Current sink input with isolated circuit type
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
Declaration of conformity
User guide
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Discrete input number 32 current sink isolated conforming to EN/IEC 61131-2 type 1
Discrete input current 3.5 mA
Sensor power supply 19-30 V
Product or component type discrete input module
Discrete input voltage 24 V DC positive
Range of product Modicon Premium Automation platform
Complementary
Module format standard
Electrical connection HE-10 connector
Response time 4 ms, <= 7 ms
Current state 0 guaranteed <= 1.5 mA
Voltage state 1 guaranteed >= 11 V
Voltage state 0 guaranteed <= 5 V
Net weight 0.3 kg
Current state 1 guaranteed >= 3 mA
Marking CE
Insulation resistance < 10 MOhm 500 V DC
Current consumption 160 mA at 24 V DC, 135 mA at 5 V DC
Power dissipation (1 W + 0.1 W x No of channels used)
Input impedance 6300 Ohm at state 1
Environment
Operating altitude 0...2000 m
IP degree of protection IP20
Protective treatment TC
Relative humidity 5-95 % without condensation for storage, 10-95 % without condensation for operation
Ambient air temperature for storage -25-70 °C
Dielectric strength 1500 V AC at 50/60 Hz
Pollution degree 2
Standards 89/336/EEC, 73/23/EEC, CSA C22.2 No 213 Class I Division 2 Group C, 93/68/EEC, CSA C22.2 No 213 Class I Division 2 Group D, UL 508, EN/IEC 61131-2, 92/31/EEC, CSA C22.2 No 213 Class I Division 2 Group A, CSA C22.2 No 142, IEC 60664, CSA C22.2 No 213 Class I Division 2 Group B
Ambient air temperature for operation 0-60 °C
Product certifications DNV, ABS, RINA, RMRS, BV, GL, LR
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 18.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 412.0 g
