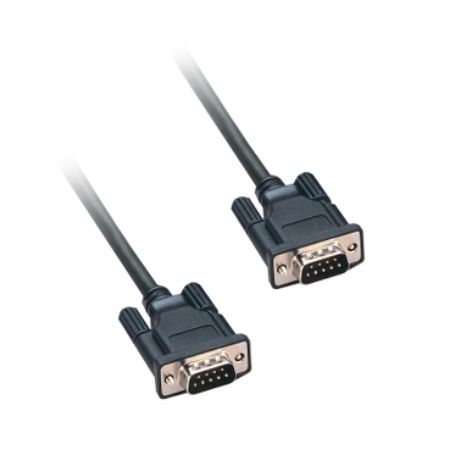

Picture of daisy chaining Bus X cable kit, Modicon X80, for racks, 2 connectors SUB-D9, 28m
SKU:

TSXCBY280KT

daisy chaining Bus X cable kit, Modicon X80, for racks, 2 connectors SUB-D9, 28m

$2,454.10 INC GST
Available for Shipping : 14-Aug-2025
daisy chaining Bus X cable kit, Modicon X80, for racks, 2 connectors SUB-D9, 28m
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
This cable kit is part of the Modicon X80 range, an offer of common IO modules, communication modules, power supplies, and backplanes for Modicon M340 and Modicon M580 automation platforms. The kit is used to connect bux-X racks one to the other in a daisy chain topology. It fits to straight connectors. It is ready to use. The cable is 28m long. It is an IP20 rated product. It has a black color. It is used for expanding a Modicon system. The use of a line terminator is recommended if one port remains available on the rack expansion module. The kit includes 1 cable and 2 transient voltage suppressors. It is connected to the rack expansion module BMXXBE0100, installed on both main and local racks, or on 2 local racks. The Modicon range is tailored for easy migration of legacy products. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination for multiracks configuration
Accessory / separate part type connection kit
Accessory / separate part category connection accessories
Accessory / separate part designation daisy chaining Bus X cable kit
Range of product Modicon Premium Automation platform
Complementary
Kit composition 1 cable + 2 transient voltage suppressors
Net weight 3.06 kg
Cable length 28 m
Electrical connection 2 connectors SUB-D 9
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 38.000 cm
Package 1 Length 50.000 cm
Package 1 Weight 3.595 kg
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 11.531 kg
