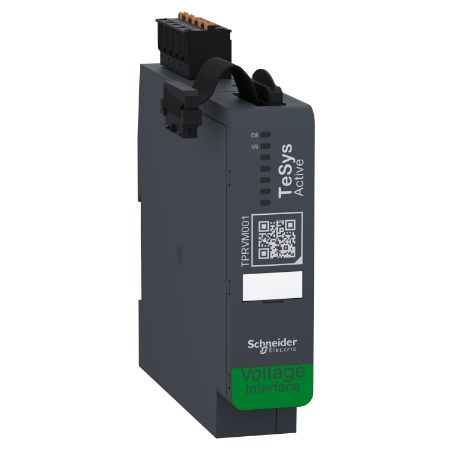

Picture of Voltage interface module, TeSys island, 690VAC 47-63 Hz, Isolated switching input for safe stop
SKU:

TPRVM001

Voltage interface module, TeSys island, 690VAC 47-63 Hz, Isolated switching input for safe stop

Old price: $513.32 INC GST
$436.32 INC GST
Available for Shipping : 14-Sep-2025
Voltage interface module, TeSys island, 690VAC 47-63 Hz, Isolated switching input for safe stop
  • Monitoring of the mains voltage powering the island
  • Reporting of the voltage to the bus coupler to enable power & energy monitoring
  • Manages motors and other electrical loads up to 80 A (AC-3) / 37 kW/40 hp
  • All adjustments and setting are digitized, no mechanical dials or dip switches
  • Embedded Cybersecurity (Achilles Level 2)
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalog
Instruction sheet
Quick start guide
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
TeSys island voltage interface module, 100-690V / 47-63Hz. Connected to a TPRBC bus coupler it measures the mains voltages powering the loads. It provides the voltage values for power and energy calculation, calculates the RMS values and phase sequence. Voltage measurement range 100-690 V +/- 5 %, phase frequency measurement range 47-63 Hz +/- 1 Hz in single phase or 3-phase systems. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name TPRVM
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 61010-1
Measurement accuracy frequency: +/- 1 Hz, , voltage: +/- 5 %,
Metering type phase sequence, phase frequency 47...63 Hz, phase voltage 100...690 V
Device presentation reporting of the voltage to the bus coupler to enable power & energy monitoring, monitoring of the mains voltage powering the island
Range TeSys
[Ui] rated insulation voltage 690 V conforming to IEC 61010-1
Overvoltage category III
Function of module identification of dip and swell events level and duration, calculation of RMS phase voltages, voltage phase sequence, fundamental frequency, monitoring of voltages in 3-phase systems without neutral N connection, monitoring of voltages in single phase systems L-N or L-L
Local signalling 1 LED (green/red) for VS (voltage status), 1 LED (green/red) for DS (device status)
Product compatibility TPRBC bus coupler
Product name TeSys island
Product or component type voltage interface module
[Ue] rated operational voltage 690 V AC 47...63 Hz
Complementary
Power dissipation in W 0.5 W maximum
Connections - terminals measuring input: removable spring terminal block 3 cable(s) 0.25-2.5 mm² (AWG 22...AWG 14) flexible with cable end, measuring input: removable spring terminal block 3 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) flexible without cable end, measuring input: removable spring terminal block 3 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) rigid
Standards CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201
Product certifications EAC (pending), CSA, UL
Height 118 mm
[Us] rated supply voltage 24 V DC supplied by the bus coupler
Depth 114 mm
Width 25 mm
Net weight 0.159 kg
Current consumption 2 mA
Mounting mode horizontal and vertical (35 mm symmetrical rail)
Environment
Fire resistance 960 °C conforming to UL 94
IP degree of protection IP20
Relative humidity 5-95 %
Protective treatment TC
Ambient air temperature for storage -25-70 °C
Pollution degree 2
Electromagnetic compatibility line voltage circuit: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, line voltage circuit: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4, radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
Ambient air temperature for operation -10-60 °C
Operating altitude 0...2000 m without derating
Vibration resistance 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn (duration = 11 ms) conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 13.500 cm
Package 1 Length 15.500 cm
Package 1 Weight 235.000 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.295 kg
