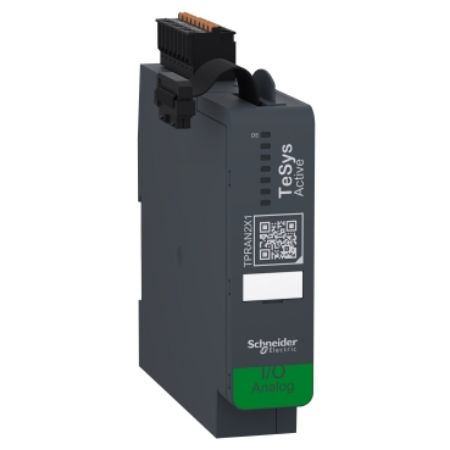

Picture of Analog IO module, TeSys island, 2 inputs, 1 output, 24VDC, Twisted shielded pairs cable
SKU:

TPRAN2X1

Analog IO module, TeSys island, 2 inputs, 1 output, 24VDC, Twisted shielded pairs cable

Old price: $589.60 INC GST
$501.16 INC GST
Available for Shipping : 23-Jul-2025
Analog IO module, TeSys island, 2 inputs, 1 output, 24VDC, Twisted shielded pairs cable
  • IO module providing 4 digital inputs and 2 digital outputs
  • Operational only when connected to a bus coupler TPRBC
  • Manages motors and other electrical loads up to 80 A (AC-3) / 37 kW/40 hp
  • All adjustments and setting are digitized, no mechanical dials or dip switches
  • Embedded Cybersecurity (Achilles Level 2)
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalog
Quick start guide
Environmental Disclosure
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
TeSys island analog IO module, 2 analog inputs, 1 analog output. Connected to a TPRBC bus coupler it is used for advanced control functions (TeSys avatars). Two analog inputs can be configured for measurement of voltage (-10/+10V, 0/+10V), current (0-20mA, 4-20mA) or temperature probes (Ni, Pt, thermocouples). One analog output can be configured for driving voltage source (-10/+10V, 0/+10V) or current source (0-20mA, 4-20mA). Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Measurement accuracy +/- 0.4 % of full scale in negative temperature range thermocouple 25-25 °C, +/- 0.1 % of full scale in positive temperature range thermocouple 25-25 °C, +/- 0.1 % of full scale temperature probe 25-25 °C, +/- 0.1 % of full scale current 25-25 °C, +/- 0.1 % of full scale voltage 25-25 °C
Device short name TPRAN
Device presentation operational only when connected to a bus coupler TPRBC, enabling advanced control functions in a TeSys island system, IO module providing 2 analog inputs and 1 analog output
Range TeSys
Type of cable twisted shielded pairs cable <30 m for input/output circuit
Analogue input type thermocouple 0...2315 °C thermocouple C, thermocouple - 200...800 °C thermocouple E, thermocouple - 200...1300 °C thermocouple N, thermocouple - 200...400 °C thermocouple T, thermocouple 0...1820 °C thermocouple B, thermocouple 0...1760 °C thermocouple S, thermocouple 0...1760 °C thermocouple R, thermocouple - 200...1300 °C thermocouple K, thermocouple - 200...1000 °C thermocouple J, temperature probe - 200...600 °C temperature probe: Pt 1000, temperature probe -200...+850 °C temperature probe: Pt 100, temperature probe - 60...180 °C temperature probe: Ni 1000, temperature probe - 60...180 °C temperature probe: Ni 100, voltage - 10...10 V, voltage 0...10 V, current 0...20 mA, current 4...20 mA
Function of module driving voltage or current source on 1 configurable analog output, measurement of voltage, current or temperature on 2 configurable analog inputs
Analogue output resolution 11 bits + sign, - 10...10 V full scale, 12 bits, 0...10 V full scale, 12 bits, 0...20 mA full scale, 12 bits, 4...20 mA full scale
Local signalling 1 LED (green/red) for DS (device status)
Product compatibility TPRBC bus coupler
Analogue input number 2 isolated with common point
Product name TeSys island
Analogue input resolution 15 bits + sign full scale
Product or component type analog IO module
Analogue output type voltage - 10...10 V, voltage 0...10 V, current 0...20 mA, current 4...20 mA
Input impedance >= 1 MOhm temperature probe, >= 1 MOhm thermocouple, >= 1 MOhm voltage, <= 50 Ohm current
Analogue output number 1 isolated
Complementary
[Uimp] rated impulse withstand voltage 0.5 kV conforming to IEC 61010-1
Power dissipation in W 0.5 W maximum
Connections - terminals input/output circuit: removable spring terminal block 8 cable(s) 0.25-2.5 mm² (AWG 22...AWG 14) flexible with cable end, input/output circuit: removable spring terminal block 8 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) flexible without cable end, input/output circuit: removable spring terminal block 8 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) rigid
Standards CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61010-2-201
Product certifications EAC (pending), CSA, UL
Height 118 mm
[Us] rated supply voltage 24 V DC supplied by the bus coupler
Depth 114 mm
Width 25 mm
Current consumption 160 mA
Net weight 0.172 kg
Mounting mode horizontal and vertical (35 mm symmetrical rail)
Environment
Fire resistance 960 °C conforming to UL 94
Relative humidity 5-95 %
Protective treatment TC
Ambient air temperature for storage -25-70 °C
Pollution degree 2
Electromagnetic compatibility surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4, radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
IP degree of protection IP20
Ambient air temperature for operation -10-60 °C
Operating altitude 0...2000 m without derating
Vibration resistance 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn (duration = 11 ms) conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 13.500 cm
Package 1 Length 15.500 cm
Package 1 Weight 245.000 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.654 kg
