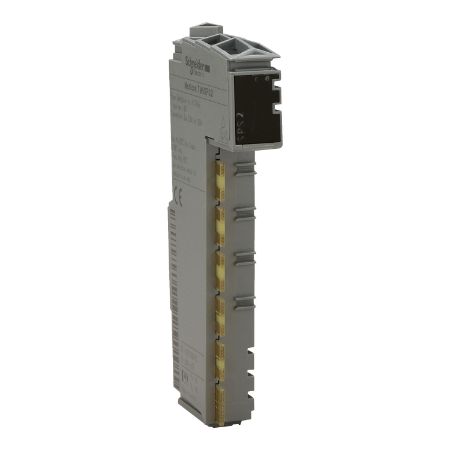

Picture of power distribution module, Modicon TM5, 24V DC IO with bus
SKU:

TM5SPS2

power distribution module, Modicon TM5, 24V DC IO with bus

Old price: $371.25 INC GST
$352.69 INC GST
Available for Shipping : 11-Aug-2025
Product Selector
power distribution module, Modicon TM5, 24V DC IO with bus
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Circularity Profile
Declaration of conformity
User guide
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The is a power distribution module is suitable for supply 24V DC I/O modules and bus TM5. It is a power distribution module with a current consumption of 25mA 24V DC and a maximum power dissipation of 1.91W. This product is part of a flexible and scalable I/O configuration for automation solutions. It has a short-circuit protection with 10A external fuse. It is an IP20 rated product. The housing colour is grey. It weighs 0.03kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon M258 and Modicon LMC058 controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Products specifications

Attribute name Attribute value
Main
Product specific application supply 24 V DC I/O modules and bus TM5
Product or component type power distribution module
Range of product Modicon TM5
Complementary
Product compatibility logic controller, motion controller
Range compatibility Modicon M258, Modicon LMC058
Short-circuit protection 10 A external fuse
Colour grey
Maximum power dissipation in W 1.91 W
Current consumption <= 25 mA 24 V DC
Power supply output current 10-10 A for I/O power segment, 740-740 mA for TM5 power bus 55-60 °C, 1136-1136 mA for TM5 power bus -10-55 °C
Marking CE
Network type DC
[Us] rated supply voltage 24 V
Environment
Operating altitude 0...2000 m
Resistance to fast transients 2 kV (power lines) conforming to EN/IEC 61000-4-4, 1 kV (shielded cable) conforming to EN/IEC 61000-4-4, 1 kV (I/O) conforming to EN/IEC 61000-4-4
Resistance to electrostatic discharge 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -25-70 °C
Surge withstand 1 kV common mode conforming to EN/IEC 61000-4-5, 0.5 kV differential mode conforming to EN/IEC 61000-4-5
Electromagnetic compatibility EN/IEC 61000-4-6
Disturbance radiated/conducted CISPR 11
Shock resistance 15 gn for 11 ms
Vibration resistance 3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail
Ambient air temperature for operation -10-50 °C (vertical installation), 55-60 °C with derating factor (horizontal installation), -10-55 °C without derating (horizontal installation)
Storage altitude 0-3000 m
Standards IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213, UL 508
Resistance to electromagnetic fields 10 V/m 80...2000 MHz conforming to EN/IEC 61000-4-3, 1 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3
Product certifications GOST-R, cULus, C-Tick, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 6.000 cm
Package 1 Length 10.500 cm
Package 1 Weight 50.000 g
Unit Type of Package 2 2
Number of Units in Package 2 97
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.286 kg
