SKU:

TM5SPDG12F

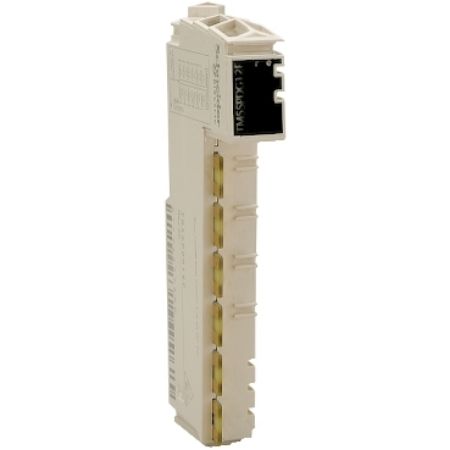

Common distribution module, Modicon TM5, 12 x 0 V DC

Old price: $237.05 INC GST
$225.20 INC GST
Available for Shipping : 11-Aug-2025
Common distribution module, Modicon TM5, 12 x 0 V DC
Manufacturer: Schneider Electric
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a common distribution electronic module with a rated supply voltage of 24V DC. It allows cabling various voltage to power 12 I/O in 0V DC. This product is part of a flexible and scalable I/O configuration for automation solutions. It has a 6.3A internal fuse. It is an IP20 rated product. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with distributed safety I/O on Sercos bus Modicon M258 logic controllers, Modicon LMC058 and Modicon LMC078 motion controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Products specifications

Attribute name Attribute value
Main
Product specific application cabling various voltage to power 12 I/O in 0 V DC
Product or component type common distribution module
Range of product Modicon TM5
Complementary
Product compatibility logic controller, motion controller
Range compatibility Modicon LMC058, Modicon M258
Short-circuit protection 6.3 A internal fuse
Net weight 0.025 kg
Marking CE
Network type DC
[Us] rated supply voltage 24 V
Environment
Operating altitude 0...2000 m
Resistance to fast transients 2 kV (power lines) conforming to IEC 61000-4-4, 1 kV (shielded cable) conforming to IEC 61000-4-4, 1 kV (I/O) conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV in air conforming to IEC 61000-4-2, 4 kV on contact conforming to IEC 61000-4-2
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -25-70 °C
Surge withstand 1 kV common mode conforming to IEC 61000-4-5, 0.5 kV differential mode conforming to IEC 61000-4-5
Pollution degree 2 conforming to IEC 60664
Electromagnetic compatibility EN/IEC 61000-4-6
Disturbance radiated/conducted CISPR 11
Shock resistance 15 gn for 11 ms
Vibration resistance 3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail
IP degree of protection IP20 conforming to IEC 61131-2
Ambient air temperature for operation 0-60 °C with derating factor (horizontal installation), 0-55 °C without derating (horizontal installation), 0-50 °C (vertical installation)
Storage altitude 0-3000 m
Standards CSA C22.2 No 142, UL 508, CSA C22.2 No 213, IEC 61131-2
Resistance to electromagnetic fields 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3
Product certifications GOST-R, CSA, C-Tick, cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 6.000 cm
Package 1 Length 10.500 cm
Package 1 Weight 39.000 g
Unit Type of Package 2 2
Number of Units in Package 2 97
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.135 kg
