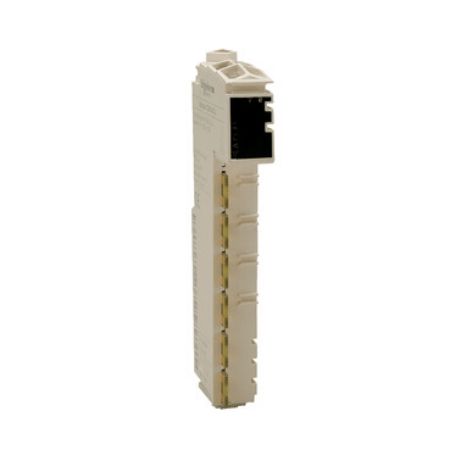

Picture of Mixed I/O module, Modicon TM5, module
SKU:

TM5SMM6D2L

Mixed I/O module, Modicon TM5, module

Old price: $795.30 INC GST
$755.54 INC GST
Available for Shipping : 11-Aug-2025
Product Selector
Mixed I/O module, Modicon TM5, module
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Circularity Profile
Declaration of conformity
Environmental Disclosure
User guide
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This IO module features 4 discrete inputs sink logic, 1 analog input -10/+10V DC, 2 discrete transistor outputs 0.5A source logic, 1 analog output 0…20mA. There is an isolation between channel and bus at 500V AC. This product is part of a flexible and scalable I/O configuration for automation solutions. It features 2 LEDs for power supply, 2 LEDs for safety status and 20 LEDs for input status signaling. It is furnished with 2 wires for electrical connection. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Products specifications

Attribute name Attribute value
Main
Product compatibility logic controller, motion controller
Range of product Modicon TM5
Range compatibility Modicon M258, Modicon LMC058
Product or component type mixed I/O module
Complementary
Voltage state 1 guaranteed >= 15 V
Protection type against short-circuits for analog output, thermal overload protection for digital output, against short-circuits for digital output, against reverse polarity for digital output
Measurement resolution 4.883 µA, 0...20 mA/4...20 mA, 0...20 mA, 2.441 mV, +/- 10 V, +/- 10 V
Temperature coefficient +/- 0.02 %FS/°C (output: +/- 10 V) , +/- 0.02 %FS/°C (output: 0...20 mA) , +/-0.006 %FS/°C (input: +/- 10 V) , +/- 0.009 %FS/°C (input: 0...20 mA/4...20 mA)
Common mode rejection 70 dB 50 Hz for analog input, 70 dB DC for analog input
Isolation 500 Vrms AC insulation between channel and bus, no insulation between channels
Load impedance ohmic <= 300 Ohm (input: 0...20 mA/4...20 mA) , <= 300 Ohm (output: 0...20 mA) at 55-60 °C, <= 400 Ohm (output: 0...20 mA) at 0-55 °C
Discrete input logic sink
Colour white
Analogue output number 1
Maximum power dissipation in W 1.75 W
Conversion time 300 µs for analog output
Type of cable shielded cable
Discrete output current <= 1 A, <= 0.5 A per output
Input voltage limits 20.4...28.8 V
Marking CE
Response time 1 ms for analog output, <= 250 µs from state 1 to state 0 for digital output, <= 250 µs from state 0 to state 1 for digital output
Wiring mode 1 wire for digital input/output
Discrete output logic source
Measurement error < 0.15 % of full scale (output: 0...20 mA) at 25 °C, < 0.15 % of full scale (output: +/- 10 V) at 25 °C, < 0.08 % of full scale (input: 0...20 mA/4...20 mA) at 25 °C, < 0.08 % of full scale (input: +/- 10 V) at 25 °C
Discrete output type transistor
[Us] rated supply voltage 24 V DC -15...20 %
Sampling duration 300 µs for analog input
Switching frequency 100 Hz, resistive for digital output
Input filtering <= 25 ms configurable by software, 1 ms by default, <= 2 µs hardware
Analogue input type current, input range: 0...20 mA/4...20 mA, voltage, input range: +/- 10 V
Peak output current 14 A
Analogue output resolution 12 bits, 0...20 mA, 12 bits + sign, +/- 10 V
Local signalling 1 LED (green), 1 LED (orange), 2 LEDs (orange) for digital output status, 4 LEDs (green) for digital input status, 1 LED (red) for power supply (OFF), 1 LED (green) for power supply (ON)
Discrete input number 4
Output voltage limits 20.4...28.8 V
Discrete output number 2
Analogue input number 1
Current consumption 73 mA at 24 V DC inputs/outputs, 2 mA at 5 V DC bus
Input impedance >= 1 MOhm analog, +/- 10 V, 7.18 kOhm digital
Maximum leakage current 5 µA (when switched off) for digital output
Voltage state 0 guaranteed <= 5 V
Net weight 0.025 kg
Analogue input resolution 12 bits for current, 12 bits + sign for voltage
Discrete input current 3.3 mA
Supply internal
Non-linearity +/- 0.1 %FS (output: +/- 10 V) , +/- 0.1 %FS (output: 0...20 mA) , +/- 0.02 %FS (input: +/- 10 V) , +/- 0.02 %FS (input: 0...20 mA/4...20 mA)
Discrete input voltage type DC
Analogue output type current: 0...20 mA, voltage: +/- 10 V
Discrete input voltage 24 V
Minimum output impedance 10 kOhm +/- 10 V 55-60 °C, 1 kOhm +/- 10 V 0-55 °C
Output voltage 24 V DC
Environment
Resistance to fast transients 2 kV (power lines) conforming to IEC 61000-4-4, 1 kV (shielded cable) conforming to IEC 61000-4-4, 1 kV (I/O) conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV in air conforming to IEC 61000-4-2, 4 kV on contact conforming to IEC 61000-4-2
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -25-70 °C
Surge withstand 1 kV common mode conforming to IEC 61000-4-5, 0.5 kV differential mode conforming to IEC 61000-4-5
Pollution degree 2 conforming to IEC 60664
Electromagnetic compatibility EN/IEC 61000-4-6
Disturbance radiated/conducted CISPR 11
IP degree of protection IP20 conforming to IEC 61131-2
Ambient air temperature for operation 0-50 °C (vertical installation), 55-60 °C with derating factor (horizontal installation), 0-55 °C without derating (horizontal installation)
Resistance to electromagnetic fields 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3
Operating altitude 0...2000 m
Shock resistance 15 gn for 11 ms
Vibration resistance 3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail
Storage altitude 0-3000 m
Standards CSA C22.2 No 213, UL 508, CSA C22.2 No 142, IEC 61131-2
Product certifications GOST-R, cULus, CSA, C-Tick
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 6.000 cm
Package 1 Length 10.500 cm
Package 1 Weight 43.000 g
Unit Type of Package 2 2
Number of Units in Package 2 97
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.520 kg
