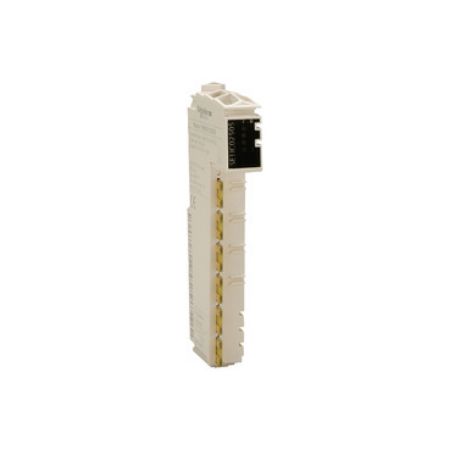

Picture of Counter module, Modicon TM5, 1 HSC incremental, 100 KHz
SKU:

TM5SE1IC01024

Counter module, Modicon TM5, 1 HSC incremental, 100 KHz

Old price: $729.30 INC GST
$692.84 INC GST
Available for Shipping : 11-Aug-2025
Counter module, Modicon TM5, 1 HSC incremental, 100 KHz
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Circularity Profile
Environmental Disclosure
Instruction sheet
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This counter module provides 1 incremental encoder input. Its counting frequency is 100kHz per channel. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. The maximum cycle time is 2ms and counter input resolution is 16bit/32bit. It is an IP20 rated product. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Products specifications

Attribute name Attribute value
Main
Function of module 24 V DC encoder power supply, 2 x 24 V DC auxiliary inputs
Product specific application axis following with encoder, frequency meter, period measurement, upcounting, frequency generator, downcounting
Discrete input number 1
Product or component type counter module
Counting frequency 100 kHz
Encoder type 1 incremental encoder
Range of product Modicon TM5
Complementary
Product compatibility motion controller, logic controller
Range compatibility Modicon M258, Modicon LMC058
Discrete input current 3.3 mA at 24 V
Isolation 500 Vrms AC insulation between channel and bus
Discrete input logic sink
Maximum power dissipation in W 1.41 W
Input resistance 7.19 kOhm
Input compatibility 1 incremental encoder (24 V)
Current consumption 58 mA at 24 V DC input/output, 2 mA at 5 V DC bus
Counter inputs resolution 16 bits/32 bits
Net weight 0.025 kg
Marking CE
Discrete input voltage 24 V DC
Maximum cycle time 2 ms
Environment
Operating altitude 0...2000 m
Resistance to fast transients 2 kV (power lines) conforming to IEC 61000-4-4, 1 kV (shielded cable) conforming to IEC 61000-4-4, 1 kV (I/O) conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV in air conforming to IEC 61000-4-2, 4 kV on contact conforming to IEC 61000-4-2
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -25-70 °C
Surge withstand 1 kV common mode conforming to IEC 61000-4-5, 0.5 kV differential mode conforming to IEC 61000-4-5
Pollution degree 2 conforming to IEC 60664
Electromagnetic compatibility EN/IEC 61000-4-6
Disturbance radiated/conducted CISPR 11
Shock resistance 15 gn for 11 ms
Vibration resistance 3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail
IP degree of protection IP20 conforming to IEC 61131-2
Ambient air temperature for operation 0-50 °C (vertical installation), 0-60 °C with derating factor (horizontal installation), 0-55 °C without derating (horizontal installation)
Storage altitude 0-3000 m
Standards UL 508, CSA C22.2 No 142, CSA C22.2 No 213, IEC 61131-2
Resistance to electromagnetic fields 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3
Product certifications cULus, GOST-R, C-Tick, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.900 cm
Package 1 Width 5.900 cm
Package 1 Length 10.400 cm
Package 1 Weight 38.000 g
Unit Type of Package 2 2
Number of Units in Package 2 97
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.036 kg
