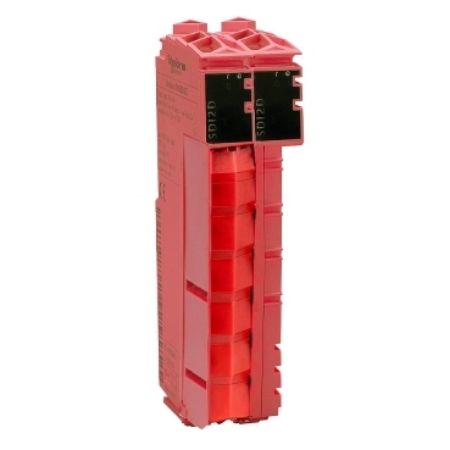

Picture of Safety dc discrete output module, Modicon TM5, digital 6O, 24V 0,2 A
SKU:

TM5SDO6TBFS

Safety dc discrete output module, Modicon TM5, digital 6O, 24V 0,2 A

Old price: $868.45 INC GST
$825.03 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
Safety dc discrete output module, Modicon TM5, digital 6O, 24V 0,2 A
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This safety discrete output module provides 6 outputs, 24V DC, transistor 0,2A. There is an isolation between channel and bus at 500V AC. This safety module, associated with TM5CSLC safety logic controller provides distributed safety solutions on Sercos bus up to SIL 3, Cat. 4, PL e, SIL CL3. It features 2 LEDs for power supply, 2 LEDs for safety status and 20 LEDs for input status signaling. It is furnished with 2 wires for electrical connection. Its housing colour is red. It weighs 0.080kg. It measure 75mm deep, 25mm wide, 99mm high. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon TM5CSLC safety logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Products specifications

Attribute name Attribute value
Main
Discrete output number 6
Product or component type safety dc discrete output module
Range of product Modicon TM5
Discrete output type solid state
Complementary
Safety level PL = e conforming to EN 13849-1, SIL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508
Maximum leakage current 10 µA when switched off
Maximum power consumption in W 1.3 W for internal, 0.25 W for bus
Product compatibility PacDrive LMC Pro, PacDrive LMC Pro 2, PacDrive LMC Eco
Range compatibility PacDrive LMC motion controller
Peak output current 12 A
Protection type short-circuit protection,  overload protection
Safety reliability data PFH < 1E-9, PFD < 1E-5, MTTFd > 100 years
Local signalling 4 LEDs red/orange for output status, 2 LEDs red for safety status, 1 LED red for power supply, 1 LED green for power supply
Isolation 500 Vrms AC insulation between channel and bus, no insulation between channels
Colour red
Switching frequency <= 500 Hz resistive load
Output voltage limits 20.4...28.8 V
Net weight 0.025 kg
Electrical connection 2 wires
Marking CE
Maximum current per output common 2 A
Output voltage 24 V DC
Current per channel 0.2 A
Discrete output logic source
Environment
Operating altitude 0...2000 m
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -40-70 °C
Pollution degree 2 conforming to IEC 60664
Shock resistance 15 gn for 11 ms
Vibration resistance 3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail
IP degree of protection IP20 conforming to EN 60529
Ambient air temperature for operation -10-55 °C (horizontal installation), -10-50 °C (vertical installation)
Electromagnetic compatibility conducted RF disturbances conforming to EN/IEC 61000-4-6, 1.2/50 µs shock waves immunity test, 1 kV common mode conforming to EN/IEC 61000-4-5, 1.2/50 µs shock waves immunity test, 0.5 kV differential mode conforming to EN/IEC 61000-4-5, electrical fast transient/burst immunity test, 2 kV power lines conforming to EN/IEC 61000-4-4, electrical fast transient/burst immunity test, 1 kV shielded cable conforming to EN/IEC 61000-4-4, electrical fast transient/burst immunity test, 1 kV I/O conforming to EN/IEC 61000-4-4, susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz conforming to EN/IEC 61000-4-3, electrostatic discharge immunity test, 8 kV in air conforming to EN/IEC 61000-4-2, conducted and radiated emissions conforming to CISPR 11, electrostatic discharge immunity test, 4 kV on contact conforming to EN/IEC 61000-4-2
Storage altitude 0-3000 m
Standards IEC 62061, IEC 61508, EN 13849-1, CSA C22.2 No 142, IEC 61131-2, UL 508
Product certifications CSA, cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.200 cm
Package 1 Width 6.000 cm
Package 1 Length 10.500 cm
Package 1 Weight 69.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.770 kg
