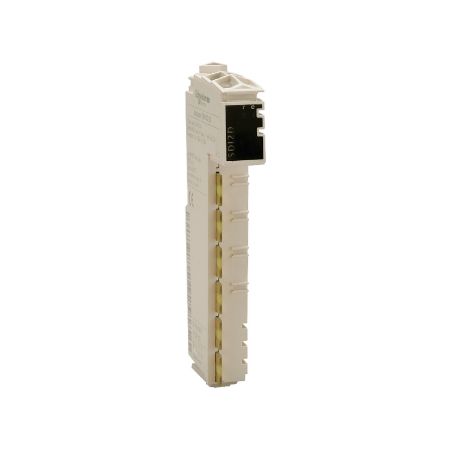

Picture of discrete output module, Modicon TM5, 6 DO, 24V DC, 0.5A, 2 wires
SKU:

TM5SDO6T

discrete output module, Modicon TM5, 6 DO, 24V DC, 0.5A, 2 wires

Old price: $306.35 INC GST
$291.03 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
discrete output module, Modicon TM5, 6 DO, 24V DC, 0.5A, 2 wires
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Circularity Profile
Instruction sheet
Environmental Disclosure
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This discrete output module provides 6 discrete outputs with transistor discrete output. Its output voltage limits are 20.4 to 28.8V DC, and provides a maximum power dissipation of 1.2W. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an isolation between channel and bus at 500V AC. It is furnished with two wires for electrical connection. It is an IP20 rated product. Its housing colour is white.It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Products specifications

Attribute name Attribute value
Main
Discrete output number 6
Product or component type discrete output module
Range of product Modicon TM5
Discrete output type transistor
Complementary
Maximum leakage current 5 µA when switched off
Product compatibility motion controller, PacDrive LMC Eco, PacDrive LMC Pro 2, PacDrive LMC Pro, logic controller
Range compatibility Modicon M258, Modicon LMC058, PacDrive LMC motion controller
Peak output current 12 A
Protection type reverse polarity protection,  overload protection, short-circuit protection
Maximum supply current for sensors 500 mA
Local signalling 6 LEDs yellow for output status, 1 LED red for power supply, 1 LED green for power supply
Isolation no insulation between channels, 500 Vrms AC insulation between channel and bus
Colour white
Maximum power dissipation in W 1.2 W
Current consumption 30 mA at 24 V DC input/output, 36 mA at 5 V DC bus
Switching frequency <= 500 Hz resistive load
Output voltage limits 20.4...28.8 V
Net weight 0.025 kg
Electrical connection 2 wires
Marking CE
Response time <= 300 µs from state 1 to state 0 for output, <= 300 µs from state 0 to state 1 for output
Maximum voltage drop <2 V at 500 mA for sensor supply,  <0.3 V at 500 mA for output
Maximum current per output common 3 A
Output voltage 24 V DC
Current per channel 0.5 A
Discrete output logic source
Environment
Operating altitude 0...2000 m
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -40-70 °C
Pollution degree 2 conforming to IEC 60664
Shock resistance 15 gn for 11 ms
Vibration resistance 3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail
IP degree of protection IP20 conforming to IEC 61131-2
Ambient air temperature for operation -10-50 °C (vertical installation), -10-60 °C with derating factor (horizontal installation), -10-55 °C without derating (horizontal installation)
Electromagnetic compatibility conducted and radiated emissions conforming to CISPR 11, conducted RF disturbances conforming to IEC 61000-4-6, 1.2/50 µs shock waves immunity test, 1 kV common mode conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test, 0.5 kV differential mode conforming to IEC 61000-4-5, electrical fast transient/burst immunity test, 2 kV power lines conforming to IEC 61000-4-4, electrical fast transient/burst immunity test, 1 kV shielded cable conforming to IEC 61000-4-4, electrical fast transient/burst immunity test, 1 kV I/O conforming to IEC 61000-4-4, susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3, electrostatic discharge immunity test, 8 kV in air conforming to IEC 61000-4-2, electrostatic discharge immunity test, 4 kV on contact conforming to IEC 61000-4-2
Storage altitude 0-3000 m
Standards CSA C22.2 No 142, IEC 61131-2, CSA C22.2 No 213, UL 508
Product certifications GOST-R, C-Tick, CSA, cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 6.000 cm
Package 1 Length 10.600 cm
Package 1 Weight 38.000 g
Unit Type of Package 2 2
Number of Units in Package 2 97
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.980 kg

Related products

Picture of bus base, Modicon TM5, 24V DC, white, 1 quantity

bus base, Modicon TM5, 24V DC, white, 1 quantity

TM5ACBM11
$64.06 INC GST $67.43 INC GST
View Detail
Picture of bus base, Modicon TM5, with address setting, 24V DC, white, 1 quantity

bus base, Modicon TM5, with address setting, 24V DC, white, 1 quantity

TM5ACBM15
$191.65 INC GST $201.74 INC GST
View Detail

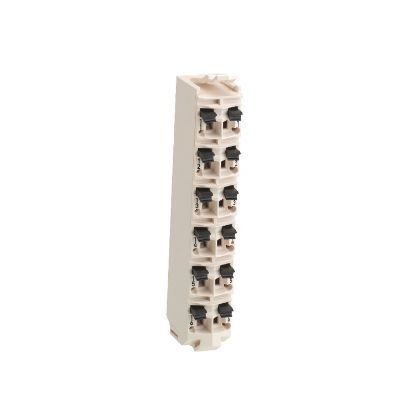

Picture of terminal block, Modicon TM5, 12 contacts, white, quantity 1
