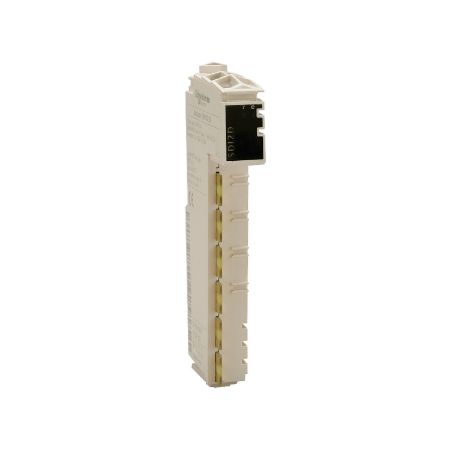

Picture of discrete IO module, Modicon TM5, 8 DI, 4O, 24V DC, 1 wire
SKU:

TM5SDM12DT

discrete IO module, Modicon TM5, 8 DI, 4O, 24V DC, 1 wire

Old price: $502.15 INC GST
$477.04 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
discrete IO module, Modicon TM5, 8 DI, 4O, 24V DC, 1 wire
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Circularity Profile
Instruction sheet
Environmental Disclosure
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This discrete I/O module provides 8 discrete inputs with sink discrete input logic and 4 source transistor outputs. It provides a rated supply voltage of 24V DC, a current consumption of 42mA at 5V DCbus, 21mA at 24V DC all inputs on, a maximum power dissipation of 1.52W. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. It is furnished with single wire for electrical connection. It is an IP20 rated product. It is furnished with single wire for electrical connection. It is an IP20 rated product. Its housing colour is white.It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon TM5
Discrete output type transistor
Discrete input number 8
Discrete output number 4
Product or component type discrete I/O module
Discrete input voltage 24 V
Complementary
Voltage state 1 guaranteed >= 15 V
Product compatibility logic controller, PacDrive LMC Eco, PacDrive LMC Pro, motion controller, PacDrive LMC Pro 2
Protection type overload protection, short-circuit protection,  reverse polarity protection
Isolation 500 Vrms AC insulation between channel and bus, no insulation between channels
Discrete input logic sink
Colour white
Maximum power dissipation in W 1.52 W
Input voltage limits 20.4...28.8 V
Marking CE
Response time <= 300 µs from state 1 to state 0 for output, <= 300 µs from state 0 to state 1 for output
Maximum voltage drop <0.3 V at 500 mA for output
Maximum current per output common 2 A
Output voltage 24 V DC
Current per channel 0.5 A
Discrete output logic source
Input filtering <= 100 ms hardware, <= 25 ms configurable by software
Maximum leakage current 5 µA when switched off
Range compatibility PacDrive LMC motion controller, Modicon LMC058, Modicon M258
Peak output current 12 A
Input impedance 6.4 kOhm
Local signalling 8 LEDs green for input status, 4 LEDs yellow for output status, 1 LED red for power supply, 1 LED green for power supply
Current consumption 21 mA at 24 V DC all inputs On, 42 mA at 5 V DC bus
Switching frequency <= 500 Hz resistive load
Output voltage limits 20.4...28.8 V
Voltage state 0 guaranteed <= 5 V
Net weight 0.025 kg
Electrical connection 1 wire
Discrete input voltage type DC
Discrete input current 3.75-3.75 mA
Environment
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -40-70 °C
Pollution degree 2 conforming to IEC 60664
IP degree of protection IP20 conforming to IEC 61131-2
Ambient air temperature for operation -10-50 °C (vertical installation), -10-60 °C with derating factor (horizontal installation), -10-55 °C without derating (horizontal installation)
Electromagnetic compatibility conducted and radiated emissions conforming to CISPR 11, conducted RF disturbances conforming to IEC 61000-4-6, 1.2/50 µs shock waves immunity test, 1 kV common mode conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test, 0.5 kV differential mode conforming to IEC 61000-4-5, electrical fast transient/burst immunity test, 2 kV power lines conforming to IEC 61000-4-4, electrical fast transient/burst immunity test, 1 kV shielded cable conforming to IEC 61000-4-4, electrical fast transient/burst immunity test, 1 kV I/O conforming to IEC 61000-4-4, susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3, electrostatic discharge immunity test, 8 kV in air conforming to IEC 61000-4-2, electrostatic discharge immunity test, 4 kV on contact conforming to IEC 61000-4-2
Operating altitude 0...2000 m
Shock resistance 15 gn for 11 ms
Vibration resistance 3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail
Storage altitude 0-3000 m
Standards IEC 61131-2, CSA C22.2 No 213, UL 508, CSA C22.2 No 142
Product certifications CSA, C-Tick, cULus, GOST-R
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 6.000 cm
Package 1 Length 10.500 cm
Package 1 Weight 39.000 g
Unit Type of Package 2 2
Number of Units in Package 2 97
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.040 kg
