SKU:

TM5SDI4D

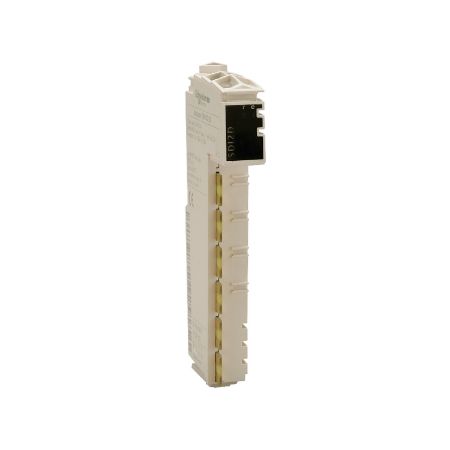

discrete input module, Modicon TM5, 4 DI, 24V DC sink, 3 wires

Old price: $183.92 INC GST
$174.72 INC GST
Available for Shipping : 11-Aug-2025
discrete input module, Modicon TM5, 4 DI, 24V DC sink, 3 wires
Manufacturer: Schneider Electric
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This discrete input module provides 4 discrete inputs with sink discrete input logic. It provides a rated supply voltage of 24V DC, a current consumption of 28mA at 5V DCbus, 25mA at 24V DC all inputs on, a maximum power dissipation of 0.73W. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. It is furnished with single wire for electrical connection. It is an IP20 rated product. It is furnished with 3 wires for electrical connection. It is an IP20 rated product. Its housing colour is white.It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Products specifications

Attribute name Attribute value
Main
Discrete input number 4
Product or component type discrete input module
Discrete input voltage 24 V
Range of product Modicon TM5
Complementary
Voltage state 1 guaranteed >= 15 V
Input filtering <= 100 ms hardware, <= 25 ms configurable by software
Product compatibility PacDrive LMC Pro 2, PacDrive LMC Eco, PacDrive LMC Pro, motion controller, logic controller
Range compatibility Modicon LMC058, PacDrive LMC motion controller, Modicon M258
Protection type overload protection, short-circuit protection
Maximum supply current for sensors 500 mA
Input impedance 6.4 kOhm
Local signalling 4 LEDs green for input status, 1 LED red for power supply, 1 LED green for power supply
Isolation 500 Vrms AC insulation between channel and bus, no insulation between channels
Discrete input logic sink
Colour white
Maximum power dissipation in W 0.73 W
Current consumption 25 mA at 24 V DC all inputs On, 28 mA at 5 V DC bus
Voltage state 0 guaranteed <= 5 V
Net weight 0.025 kg
Input voltage limits 20.4...28.8 V
Electrical connection 3 wires
Marking CE
Maximum voltage drop <2 V at 500 mA for sensor supply
Discrete input voltage type DC
Discrete input current 3.75-3.75 mA
Environment
Operating altitude 0...2000 m
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -40-70 °C
Pollution degree 2 conforming to IEC 60664
Shock resistance 15 gn for 11 ms
Vibration resistance 3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail
IP degree of protection IP20 conforming to IEC 61131-2
Ambient air temperature for operation -10-50 °C (vertical installation), -10-60 °C with derating factor (horizontal installation), -10-55 °C without derating (horizontal installation)
Electromagnetic compatibility conducted and radiated emissions conforming to CISPR 11, conducted RF disturbances conforming to IEC 61000-4-6, 1.2/50 µs shock waves immunity test, 1 kV common mode conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test, 0.5 kV differential mode conforming to IEC 61000-4-5, electrical fast transient/burst immunity test, 2 kV power lines conforming to IEC 61000-4-4, electrical fast transient/burst immunity test, 1 kV shielded cable conforming to IEC 61000-4-4, electrical fast transient/burst immunity test, 1 kV I/O conforming to IEC 61000-4-4, susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3, electrostatic discharge immunity test, 8 kV in air conforming to IEC 61000-4-2, electrostatic discharge immunity test, 4 kV on contact conforming to IEC 61000-4-2
Storage altitude 0-3000 m
Standards CSA C22.2 No 213, UL 508, CSA C22.2 No 142, IEC 61131-2
Product certifications GOST-R, cULus, C-Tick, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 6.000 cm
Package 1 Length 10.500 cm
Package 1 Weight 37.000 g
Unit Type of Package 2 2
Number of Units in Package 2 97
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.841 kg
