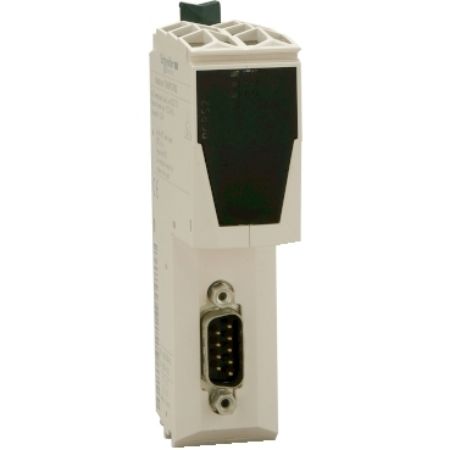

Picture of ASCII serial link communication module, Modicon TM5, modbus/ASCII PCI RS232
SKU:

TM5PCRS2

ASCII serial link communication module, Modicon TM5, modbus/ASCII PCI RS232

Old price: $889.90 INC GST
$845.40 INC GST
Available for Shipping : 11-Aug-2025
ASCII serial link communication module, Modicon TM5, modbus/ASCII PCI RS232
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
User guide
Catalog
Circularity Profile
Instruction sheet
CAD
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. It is a Modbus serial link communication module for Modicon M258 controllers. It ensures the communication on Modbus bus of Modicon M258 and LMC058 controllers. This is a communication module designed for creating distributed IO islands on Modbus bus. This optional communication module is inserted in two free PCI slots located on M258 logic controllers. It has 1 isolated serial link, male SUB-D 9 connector (RS232). It weighs 0.064kg. It measures 25mm wide, 99mm high, 75mm deep. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon TM258LD42DT4L, TM258LF42DT4L, TM258LF42DR, TM258LF66DT4L logic controllers, and Modicon LMC058 motion controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Products specifications

Attribute name Attribute value
Main
Physical interface RS232
Range of product Modicon TM5
Product or component type ASCII serial link communication module
Complementary
Product compatibility logic controller, motion controller
Maximum power dissipation in W 0.33 W
Marking CE
Range compatibility Modicon M258, Modicon LMC058
Integrated connection type 1 isolated serial link, male SUB-D 9 Modbus ASCII (RS232), 115.2 kbit/s max
Net weight 0.05 kg
Environment
Resistance to fast transients 2 kV (power lines) conforming to EN/IEC 61000-4-4, 1 kV (shielded cable) conforming to EN/IEC 61000-4-4, 1 kV (I/O) conforming to EN/IEC 61000-4-4
Resistance to electrostatic discharge 8 kV in air conforming to EN/IEC 61000-4-2, 4 kV on contact conforming to EN/IEC 61000-4-2
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -25-70 °C
Surge withstand 1 kV common mode conforming to EN/IEC 61000-4-5, 0.5 kV differential mode conforming to EN/IEC 61000-4-5
Pollution degree 2 conforming to IEC 60664
Electromagnetic compatibility EN/IEC 61000-4-6
Disturbance radiated/conducted CISPR 11
IP degree of protection IP20 conforming to IEC 61131-2
Ambient air temperature for operation 0-50 °C (vertical installation), 0-60 °C with derating factor (horizontal installation), 0-55 °C without derating (horizontal installation)
Resistance to electromagnetic fields 10 V/m 80 MHz...2 GHz conforming to EN/IEC 61000-4-3, 1 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3
Operating altitude 0...2000 m
Shock resistance 15 gn for 11 ms
Vibration resistance 3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail
Storage altitude 0-3000 m
Standards UL 508, IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213
Product certifications CSA, cULus, GOST-R, C-Tick
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.100 cm
Package 1 Width 6.000 cm
Package 1 Length 10.400 cm
Package 1 Weight 68.000 g
Unit Type of Package 2 2
Number of Units in Package 2 48
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.264 kg
