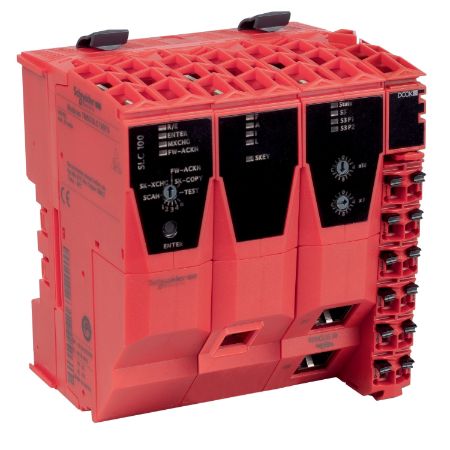

Picture of Controller system, Modicon TM5, Safe logic CPU standard, SERCOS 3 interface, 20 nodes
SKU:

TM5CSLC100FS

Controller system, Modicon TM5, Safe logic CPU standard, SERCOS 3 interface, 20 nodes

Old price: $1,454.20 INC GST
$1,381.49 INC GST
Available for Shipping : 11-Aug-2025
Controller system, Modicon TM5, Safe logic CPU standard, SERCOS 3 interface, 20 nodes
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
User guide
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This safe logic controller has Intel Xscale 266MHz processor with reverse polarity protection, and a 24 V DC power supply. The controller has integrated fuse (not interchangeable) input protection with fanless cooling. It offers SERCOS 3 (Ethernet) communication network with 100Mbps data transmission rate for the full duplex bus length, with 2 integrated shielded RJ45 ports. It supports maximum 20 safety nodes with 2 internal switches. It reaches Category 4 of safety level conforming to EN ISO 13849, and SIL 3 safety integrity level according to IEC 62061. It is an IP20 rated product. The housing colour is red. Its dimensions are 87.5mm (width) x 75mm (depth) x 99mm (height). It weighs 0.29kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with motion controller, communicating on Sercos 3 fieldbus. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Products specifications

Attribute name Attribute value
Main
Device application safety logic controller
Processor name Intel Xscale 266 MHz
Range of product Modicon TM5
Reverse polarity protection yes
Product or component type controller system
Complementary
Input protection type integrated fuse (not interchangeable)
Type of cooling fanless
Colour red
Number of devices 1 memory key slot, 2 shielded RJ45
Function available with 2 internal switch, support max 20 safety nodes
Communication network type SERCOS III (Ethernet)
Marking CE
Power consumption in W 5.1 W
Height 99 mm
Safety reliability data PFD < 1E-5, MTTFd > 100 years, PFH < 1E-9
Maximum cable distance between devices 100 m between station
Safety level PL = e conforming to EN 13849-1, SIL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508
Rated voltage 24-24 V -15...20 %
Depth 75 mm
Realtime clock with non-volatile memory
Width 87.5 mm
Local signalling 1 LED (orange) for memory key status, 4 LEDs (red) for boot status, 1 LED (orange) for firmware status, 1 LED (orange) for configuration status (Ready), 1 LED (green) for authorization status, 1 LED (green or orange) for application run or SoSafe debug mode
Transmission rate 100 Mbit/s for full duplex
Net weight 0.29 kg
Cycle time 1 ms
Environment
IP degree of protection IP20
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -25-70 °C
Ambient air temperature for operation 0-55 °C (horizontal installation), 0-45 °C (vertical installation)
Operating altitude 0...2000 m
Standards IEC 62061, IEC 61508, EN 13849-1, IEC 61131-2, IEC 61511
Product certifications cULus, GOST-R
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.100 cm
Package 1 Width 16.500 cm
Package 1 Length 31.300 cm
Package 1 Weight 509.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 4.042 kg
