Picture of Modicon M241, Module Network TM4 1 Profibus DP Slave
SKU:

TM4PDPS1

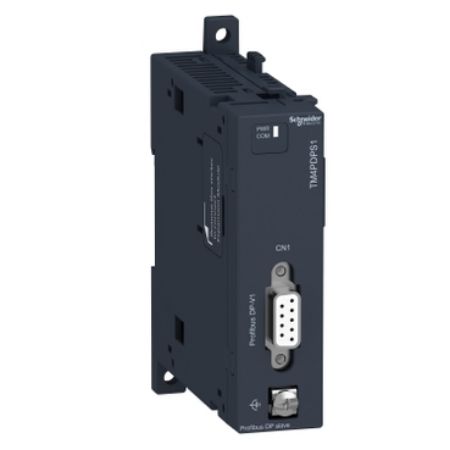

Modicon M241, Module Network TM4 1 Profibus DP Slave

$713.30 INC GST
Available for Shipping : 21-Aug-2025
Product Selector
Modicon M241, Module Network TM4 1 Profibus DP Slave
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Environmental Disclosure
Catalog
Instruction sheet
Circularity Profile
CAD
User guide
Product Page Link
Product Data Sheet
This communication module is proposed as an option Modicon M241/251 controllers. This module provides slave Profibus DP. It is equipped with a 9-way SUB-D connector.

Products specifications

Attribute name Attribute value
Main
Product or component type Profibus DP communication module
Complementary
Insulation between bus and internal logic at 1000 V DC
Surge withstand 0.5 kV I/O differential mode conforming to IEC 61000-4-5, 1 kV relay output differential mode conforming to IEC 61000-4-5, 1 kV power lines (AC) differential mode conforming to IEC 61000-4-5, 0.5 kV power lines (DC) differential mode conforming to IEC 61000-4-5, 1 kV shielded cable common mode conforming to IEC 61000-4-5, 1 kV I/O common mode conforming to IEC 61000-4-5, 2 kV relay output common mode conforming to IEC 61000-4-5, 2 kV power lines (AC) common mode conforming to IEC 61000-4-5, 1 kV power lines (DC) common mode conforming to IEC 61000-4-5
Power dissipation in W 1.5 W
Marking CE
Transmission rate 3...12 Mbit/s for bus length of 100-100 m, 9.6...93.75 kbit/s for bus length of 1200-1200 m, 187.5 kbit/s for bus length of 1000-1000 m, 500 kbit/s for bus length of 400-400 m, 1.5 Mbit/s for bus length of 200-200 m
Height 90 mm
Electrical connection SUB-D 9 1 female connector for connecting Profibus, screw connector terminal for connecting the functional ground
Depth 90 mm
Width 25 mm
Range compatibility Modicon M241, Modicon M251
Local signalling 1 LED (green/red) for communication, 1 LED (green/yellow) for power supply
Mounting support plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Product compatibility Modicon M251 logic controller, Modicon M241 logic controller
Communication port protocol Profibus DP V1, Profibus DP V0
Current consumption 290 mA at 5 V DC for communication bus
Net weight 0.1 kg
Integrated connection type Profibus DP: female SUB-D 9 connector
Environment
Resistance to fast transients 1 kV (serial link) conforming to IEC 61000-4-4, 1 kV (Ethernet line) conforming to IEC 61000-4-4, 1.5 kV (I/O) conforming to IEC 61000-4-4, 2 kV (relay output) conforming to IEC 61000-4-4, 2 kV (power lines) conforming to IEC 61000-4-4
Resistance to electrostatic discharge 6 kV on contact conforming to Marine specification (LR, ABS, DNV, GL), 8 kV in air conforming to Marine specification (LR, ABS, DNV, GL), 4 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2
IP degree of protection IP20 with protective cover in place
Relative humidity 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for storage -25-70 °C
Pollution degree 2
Ambient air temperature for operation -10-50 °C vertical installation, -10-55 °C horizontal installation
Resistance to electromagnetic fields 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Resistance to conducted disturbances 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6
Electromagnetic emission radiated emissions - test level: 54 dBμV/m QP at 100-2000 MHz conforming to Marine specification (LR, ABS, DNV, GL), radiated emissions - test level: 80...50 dμV/m QP at 150-30000 kHz conforming to Marine specification (LR, ABS, DNV, GL), radiated emissions - test level: 47 dBμV/m QP class A at 230-1000 MHz conforming to IEC 55011, conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to IEC 55011, radiated emissions - test level: 24 dBμV/m QP at 156-165 MHz conforming to Marine specification (LR, ABS, DNV, GL), radiated emissions - test level: 60...54 dBμV/m QP at 30-100 MHz conforming to Marine specification (LR, ABS, DNV, GL), radiated emissions - test level: 40 dBμV/m QP class A at 30-230 MHz conforming to IEC 55011, conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to IEC 55011, conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to IEC 55011, conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5-300 MHz conforming to IEC 55011, conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15-0.5 MHz conforming to IEC 55011
Operating altitude 0...2000 m
Vibration resistance 0.7 gn at 13.2-100 Hz on panel mounting, 1 mm at 5-13.2 Hz on panel mounting, 3 gn at 8.7-150 Hz on symmetrical rail, 1 mm at 5-13.2 Hz on symmetrical rail
Shock resistance 15 gn for 11 ms
Storage altitude 0-3000 m
Standards EIA-485, UL 508, IEC 61131-2
Product certifications cULus, C-Tick
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.600 cm
Package 1 Width 11.500 cm
Package 1 Length 17.000 cm
Package 1 Weight 190.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.478 kg
