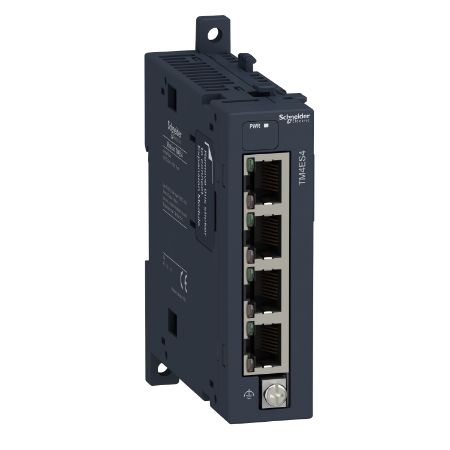

Modicon M241, Module Network TM4 4 Ethernet Switch

$422.29 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
Modicon M241, Module Network TM4 4 Ethernet Switch
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
User guide
Environmental Disclosure
Catalog
Instruction sheet
CAD
Circularity Profile
Product Page Link
Product Data Sheet
This communication module is proposed as an option Modicon M241/251 controllers. This module provides an Ethernet connection with 4 ports on controllers without embedded Ethernet. It also provides a second Ethernet connection with 4 ports on controllers with embedded Ethernet (except on TM241CEC24x). It is equipped with 4 x RJ45 connectors (10/100 Mbps, MDI/MDIX).

Products specifications

Attribute name Attribute value
Main
Product or component type Ethernet unmanaged switch
Complementary
Web services web server
Surge withstand 0.5 kV I/O differential mode conforming to IEC 61000-4-5, 1 kV relay output differential mode conforming to IEC 61000-4-5, 1 kV power lines (AC) differential mode conforming to IEC 61000-4-5, 0.5 kV power lines (DC) differential mode conforming to IEC 61000-4-5, 1 kV shielded cable common mode conforming to IEC 61000-4-5, 1 kV I/O common mode conforming to IEC 61000-4-5, 2 kV relay output common mode conforming to IEC 61000-4-5, 2 kV power lines (AC) common mode conforming to IEC 61000-4-5, 1 kV power lines (DC) common mode conforming to IEC 61000-4-5
Marking CE
Transmission rate 10/100 Mbit/s
Communication service DHCP client, Ethernet/IP slave device, updating firmware, downloading, Modbus TCP client, SNMP, programming, IEC VAR ACCESS, monitoring, NGVL, FTP, Modbus TCP slave device, Modbus TCP server
Height 90 mm
Electrical connection screw connector terminal for connecting the functional ground, RJ45 4 connectors for connecting Ethernet network
Depth 90 mm
Maximum number of connections 16 Ethernet/IP device, 8 Modbus server
Width 25 mm
Range compatibility Modicon M241, Modicon M251
Local signalling 1 LED per channel (green) for Ethernet port activity, 1 LED per channel (green/yellow) for Ethernet link, 1 LED (green) for PWR
Mounting support plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Product compatibility Modicon M251 logic controller, Modicon M241 logic controller
Communication port protocol SNMP, UDP (User Datagram Protocol), TCP (Transmission Control Protocol), Ethernet IP/Modbus TCP
Current consumption 360 mA at 5 V DC for communication bus
Net weight 0.125 kg
Redundancy no
Port Ethernet 10BASE-T/100BASE-TX - 4 port(s) copper cable
Integrated connection type Ethernet: 4 RJ45 connector
Environment
Resistance to fast transients 1 kV (serial link) conforming to IEC 61000-4-4, 1 kV (Ethernet line) conforming to IEC 61000-4-4, 1.5 kV (I/O) conforming to IEC 61000-4-4, 2 kV (relay output) conforming to IEC 61000-4-4, 2 kV (power lines) conforming to IEC 61000-4-4
Resistance to electrostatic discharge 6 kV on contact conforming to Marine specification (LR, ABS, DNV, GL), 8 kV in air conforming to Marine specification (LR, ABS, DNV, GL), 4 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2
IP degree of protection IP20 with protective cover in place
Relative humidity 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for storage -25-70 °C
Pollution degree 2
Ambient air temperature for operation -10-50 °C vertical installation, -10-55 °C horizontal installation
Resistance to electromagnetic fields 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Resistance to conducted disturbances 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6
Electromagnetic emission radiated emissions - test level: 54 dBμV/m QP at 100-2000 MHz conforming to Marine specification (LR, ABS, DNV, GL), radiated emissions - test level: 80...50 dμV/m QP at 150-30000 kHz conforming to Marine specification (LR, ABS, DNV, GL), radiated emissions - test level: 47 dBμV/m QP class A at 230-1000 MHz conforming to IEC 55011, conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to IEC 55011, radiated emissions - test level: 24 dBμV/m QP at 156-165 MHz conforming to Marine specification (LR, ABS, DNV, GL), radiated emissions - test level: 60...54 dBμV/m QP at 30-100 MHz conforming to Marine specification (LR, ABS, DNV, GL), radiated emissions - test level: 40 dBμV/m QP class A at 30-230 MHz conforming to IEC 55011, conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to IEC 55011, conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to IEC 55011, conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5-300 MHz conforming to IEC 55011, conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15-0.5 MHz conforming to IEC 55011
Operating altitude 0...2000 m
Vibration resistance 0.7 gn at 13.2-100 Hz on panel mounting, 1 mm at 5-13.2 Hz on panel mounting, 3 gn at 8.7-150 Hz on symmetrical rail, 1 mm at 5-13.2 Hz on symmetrical rail
Shock resistance 15 gn for 11 ms
Storage altitude 0-3000 m
Standards IEC 61131-2, UL 508
Product certifications C-Tick, cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.635 cm
Package 1 Width 11.532 cm
Package 1 Length 17.033 cm
Package 1 Weight 210.0 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 5.04 kg
Unit Type of Package 3 3
Number of Units in Package 3 160
Package 3 Height 75 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 48 kg
