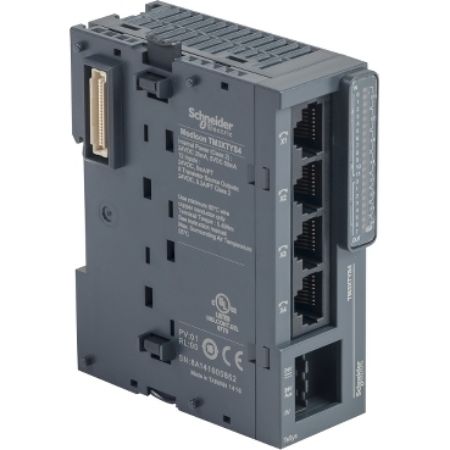

Picture of Modicon TM3, Parallel interface module, 4 Tesys motors
SKU:

TM3XTYS4

Modicon TM3, Parallel interface module, 4 Tesys motors

$241.03 INC GST
Available for Shipping : 06-Aug-2025
Product Selector
Modicon TM3, Parallel interface module, 4 Tesys motors
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
Circularity Profile
Environmental Disclosure
Catalog
User guide
CAD
Product Page Link
Product Data Sheet
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The parallel interface module provides 12 input channels, 8 transistor output channels. It is an interface module with a rated supply voltage of 24V DC, a current consumption of 1200A and an output voltage of 24V DC. There is an insulation between the RJ45 connectors and internal logic at 500V AC and non-insulated between RJ45 connectors. It is furnished with four RJ45 connector for connecting the motor starters and removable screw terminal for electrical connection. It is an IP20 rated product. Its dimensions are 30mm (Width) x 85mm (Depth) x 90mm (Height). It weighs 0.115kg. This product is certified by CE, CULus and C-Tick. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Products specifications

Attribute name Attribute value
Main
Number of output channels 8
Number of input channels 12
Range of product Modicon TM3
[Us] rated supply voltage 24 V DC by external supply (- 15...20 %)
Range compatibility Modicon M262, Modicon M241, Modicon M251, Modicon M221
Product specific application TeSys U
Product or component type parallel interface module
Complementary
Insulation non-insulated between RJ45 connectors, between the RJ45 connectors and internal logic at 500 V AC
Input current limits 5-5 mA per input
Input voltage limits 19.2...28.8 V per input
Output voltage 24 V DC for transistor output
Height 90 mm
Electrical connection 4 RJ45 connectorsfor connecting the motor starters, 3 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for connecting the 24 V DC power supply
Reset automatic reset
Depth 85 mm
Width 30 mm
Mounting support plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Local signalling 2 LEDs green for output status per channel, 3 LEDs green for input status per channel
Output protection type against overload, protection technology: current limiter
Current consumption 1200 mA at 24 V DC external power supply at state on, 10 mA at 24 V DC via bus connector at state off, 0 mA at 24 V DC via bus connector at state on, 35 mA at 5 V DC via bus connector at state off, 5 mA at 5 V DC via bus connector at state on
Net weight 0.115 kg
Response time < 10 ms turn-off for input, < 10 ms turn-on for input
Maximum load current 300 mA per channel in normal mode, 800 mA per channel in starting mode during 100 ms
Environment
Resistance to fast transients 1 kV for output conforming to EN/IEC 61000-4-4, 1 kV for input conforming to EN/IEC 61000-4-4
Resistance to electrostatic discharge 4 kV on contact conforming to EN/IEC 61000-4-2, 8 kV in air conforming to EN/IEC 61000-4-2
IP degree of protection IP20 with protective cover in place
Surge withstand 1 kV output common mode conforming to EN/IEC 61000-4-5, 1 kV input common mode conforming to EN/IEC 61000-4-5
Relative humidity 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for storage -25-70 °C
Marking CE
Resistance to magnetic fields 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8
Pollution degree 2
Ambient air temperature for operation -10-55 °C horizontal installation, -10-35 °C vertical installation
Resistance to electromagnetic fields 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
Resistance to conducted disturbances 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6
Electromagnetic emission radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011
Operating altitude 0...2000 m
Vibration resistance 3 gn at 8.4-150 Hz on panel, 3.5 mm at 5-8.4 Hz on panel, 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on DIN rail
Shock resistance 15 gn for 11 ms
Storage altitude 0-3000 m
Product certifications EAC, RCM, UKCA, cULus, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.500 cm
Package 1 Width 12.500 cm
Package 1 Length 10.500 cm
Package 1 Weight 215.000 g
Unit Type of Package 2 2
Number of Units in Package 2 42
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 10.000 kg
Unit Type of Package 3 3
Number of Units in Package 3 504
Package 3 Height 80.000 cm
Package 3 Width 105.000 cm
Package 3 Length 125.000 cm
Package 3 Weight 62.296 kg
