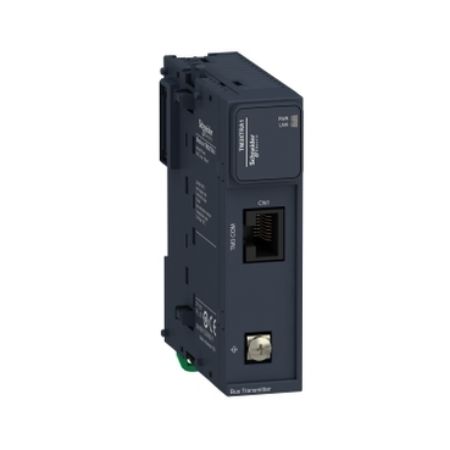

Picture of Modicon TM3, Remote transmitter module
SKU:

TM3XTRA1

Modicon TM3, Remote transmitter module

$253.50 INC GST
Available for Shipping : 06-Aug-2025
Product Selector
Modicon TM3, Remote transmitter module
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Declaration of conformity
Environmental Disclosure
Catalog
CAD
Instruction sheet
User guide
Product Page Link
Product Data Sheet
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The remote transmitter module is physically connected by a bus expansion cable. It is remote transmitter module with a current consumption of 100mA, 30mA at 5V DC via bus connector and a maximum power dissipation of 0.6W. It is furnished with RJ45 connector for connecting the bus receiver, screw connector terminal for electrical connection. It is an IP20 rated product. Its dimensions are 23.65mm (Width) x 73.3mm (Depth) x 90mm (Height). It weighs 0.065kg. This product is certified by CE, Merchant Navy, GOST, CSA HazLoc, C-Tick. It meets Class I Division 2 Groups A/B/C/D CSA C22.2 No 213, Class I Division 2 Groups A/B/C UL 1604, CSA C22.2 No 142, IEC 61131-2 and UL 508 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon TM3
Range compatibility Modicon M262, Modicon M221, Modicon M251, Modicon M241
Product or component type remote transmitter module
Complementary
Resistance to electrostatic discharge 6 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2
Cable distance between devices 0.5-5 mm extension cable with 2 RJ45 conductor between receiver and transmitter
Maximum power dissipation in W 0.6 W
Marking CE
Resistance to electromagnetic fields 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Height 90 mm
Electrical connection screw connector terminal for connecting the functional ground, RJ45 connector for connecting the bus receiver
Resistance to conducted disturbances 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6
Electromagnetic emission radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011
Depth 73.3 mm
Width 23.65 mm
Local signalling 1 LED (green) for link status, 1 LED (green) for power supply
Mounting support plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Current consumption 30 mA at 5 V DC via bus connector at state off, 100 mA at 5 V DC via bus connector at state on
Net weight 0.065 kg
Environment
IP degree of protection IP20 with protective cover in place
Relative humidity 5-95 % without condensation
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -10-50 °C (vertical installation), -10-55 °C (horizontal installation)
Pollution degree 2
Standards UL 508, IEC 61131-2, CSA C22.2 No 142, Class I Division 2 Groups A/B/C UL 1604, Class I Division 2 Groups A/B/C/D CSA C22.2 No 213
Operating altitude 0...2000 m
Vibration resistance 3 gn at 8.4-150 Hz on panel, 3.5 mm at 5-8.4 Hz on panel, 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on DIN rail
Shock resistance 15 gn for 11 ms
Storage altitude 0-3000 m
Product certifications cULus, EAC, RCM, UKCA, CE, CSA HazLoc, GOST, C-Tick, Merchant Navy
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.400 cm
Package 1 Width 10.600 cm
Package 1 Length 12.700 cm
Package 1 Weight 166.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.783 kg
Unit Type of Package 3 3
Number of Units in Package 3 144
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 37.000 kg
