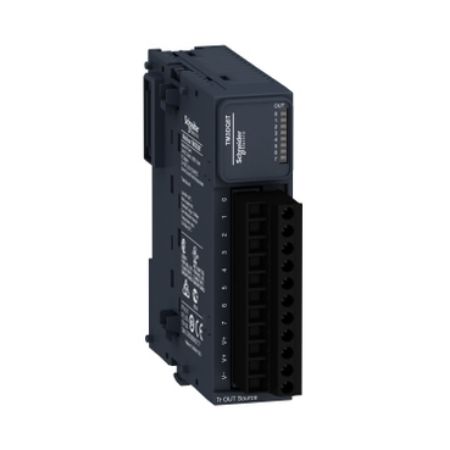

Picture of Modicon TM3, Discrete output module, 8 outputs transistor PNP (screw)
SKU:

TM3DQ8T

Modicon TM3, Discrete output module, 8 outputs transistor PNP (screw)

$296.45 INC GST
Available for Shipping : 06-Aug-2025
Product Selector
Modicon TM3, Discrete output module, 8 outputs transistor PNP (screw)
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Environmental Disclosure
Circularity Profile
Catalog
CAD
User guide
Instruction sheet
Product Page Link
Product Data Sheet
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 8 transistor outputs with source (positive) logic. It is an output module with an output voltage of 24V DC and a current consumption of 20mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and internal logic at 500V AC, non-insulated between outputs. It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for outputs. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.110kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

Products specifications

Attribute name Attribute value
Main
Discrete output voltage 24 V DC for transistor output
Discrete output current 500 mA for transistor output
Discrete output number 8
Discrete output logic positive logic (source)
Range of product Modicon TM3
Discrete output type transistor
Range compatibility Modicon M262, Modicon M221, Modicon M251, Modicon M241
Product or component type discrete output module
Complementary
Insulation non-insulated between outputs, between output and internal logic at 500 V AC
Discrete I/O number 8
Marking CE
Height 90 mm
Maximum cable distance between devices unshielded cable: <30 m for transistor output
Electrical connection 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for outputs
Maximum leakage current 0.1 mA for transistor output
Maximum tungsten load <3 W for transistor output
Depth 84.6 mm
Width 27.4 mm
Local signalling 1 LED per channel (green) for output status
Mounting support plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715
Current consumption 10 mA at 5 V DC via bus connector (at state on), 20 mA at 24 V DC via bus connector (at state on), 0 mA at 24 V DC via bus connector (at state off), 5 mA at 5 V DC via bus connector (at state off)
Maximum voltage drop <0.4 V
Net weight 0.76 kg
Response time 450 µs (turn-off), 450 µs (turn-on)
Environment
Resistance to fast transients 1 kV for I/O conforming to IEC 61000-4-4
Resistance to electrostatic discharge 4 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2
IP degree of protection IP20 with protective cover in place
Surge withstand 1 kV I/O common mode conforming to IEC 61000-4-5 DC
Relative humidity 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation)
Ambient air temperature for storage -25-70 °C
Resistance to magnetic fields 30 A/m 50/60 Hz conforming to IEC 61000-4-8
Pollution degree 2
Ambient air temperature for operation -10-55 °C horizontal installation, -10-35 °C vertical installation
Resistance to electromagnetic fields 1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
Resistance to conducted disturbances 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6
Electromagnetic emission radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011, radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011
Operating altitude 0...2000 m
Vibration resistance 3 gn at 8.4-150 Hz on panel, 3.5 mm at 5-8.4 Hz on panel, 3 gn at 8.4-150 Hz on DIN rail, 3.5 mm at 5-8.4 Hz on DIN rail
Shock resistance 15 gn for 11 ms
Storage altitude 0-3000 m
Standards IEC 61131-2
Product certifications cULus HazLoc, EAC, RCM, UKCA, cULus, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.601 cm
Package 1 Width 10.536 cm
Package 1 Length 12.965 cm
Package 1 Weight 210.0 g
Unit Type of Package 2 2
Number of Units in Package 2 42
Package 2 Height 30.0 cm
Package 2 Width 39.3 cm
Package 2 Length 56.3 cm
Package 2 Weight 10.15 kg
Unit Type of Package 3 3
Number of Units in Package 3 504
Package 3 Height 105 cm
Package 3 Width 120 cm
Package 3 Length 80 cm
Package 3 Weight 133 kg
