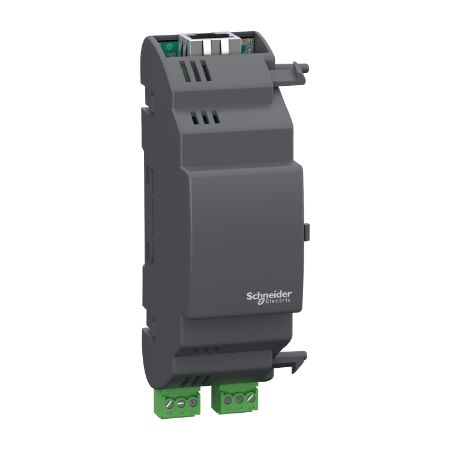

Picture of Modicon M171 Performance Plug-in Ethernet and BACnet MSTP or Modbus
SKU:

TM171AETHRS485

Modicon M171 Performance Plug-in Ethernet and BACnet MSTP or Modbus

$368.44 INC GST
Available for Shipping : 28-Aug-2025
Modicon M171 Performance Plug-in Ethernet and BACnet MSTP or Modbus
Be the first to review this product
Manufacturer: Schneider Electric
Brochure
Instruction sheet
User guide
Catalog
Product Page Link
Product Data Sheet
This communication module is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This optional module provides a specific connection to Modbus TCP or SL, BACnet/IP, MS/TP, and Ethernet. It has one RJ45 connector for Ethernet port, and 2 screw terminal blocks for RS485 port. It allows the HVAC controller to manage Data on the Modbus TCP or SL, BACnet/IP, MS/TP, and Ethernet networks. It measures 100mm high, 35mm wide and 53.93mm deep, and weighs 0.077kg. This communication module allows controllers to get an additional communication port. It is certified by CE, CSA, cURus, and EAC. It is compatible with M171 Performance logic controllers. It is sold in a 1-piece package. It is mounted by simply interlocking on the left-hand side of M171 Performance or M172 logic controllers. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon M171
Communication port protocol BACnet MS/TP, RS485, Modbus RTU, Modbus TCP, Ethernet, HTTP, SMTP, BACnet IP
Product or component type communication module
Complementary
Product compatibility logic controller M171 performance
Electrical connection removable screw terminal block
Adjustment pitch 3.81 mm
Integrated connection type RS485 wire crimp - twisted pair, Ethernet RJ45 - twisted pair
Net weight 0.077 kg
Supply via base board EVD/EVC
Physical interface RJ45, 90° insertion - 2.5-2.5 mm² cable
Environment
IP degree of protection IP20
Relative humidity 10-90 % without condensation
Ambient air temperature for storage -20-85 °C
Marking CE
Ambient air temperature for operation -10-55 °C
Product certifications EAC, cURus, CSA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.200 cm
Package 1 Width 9.100 cm
Package 1 Length 18.700 cm
Package 1 Weight 173.900 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.351 kg
