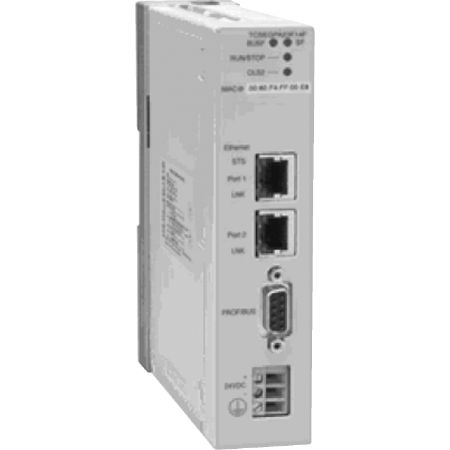

Picture of Profibus DP V1 remote master - for Premium/Quantum/M340/M580 PLC
SKU:

TCSEGPA23F14F

Profibus DP V1 remote master - for Premium/Quantum/M340/M580 PLC

$6,314.88 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
Profibus DP V1 remote master - for Premium/Quantum/M340/M580 PLC
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
User guide
Catalog
Product Page Link
Product Data Sheet
This product is part of the Profibus DP range, an offer of remote master modules. The Profibus Remote Master (PRM) module is connected to the Ethernet Modbus TCP/IP network via its integrated 2-port switch, as close as possible to the process and the instrumentation. It has Profibus 2 twisted shielded pairs cable and Modbus TCP category 5 shielded twisted pair (STP) transmission support medium. It is equipped with 2 Ethernet TCP/IP-RJ45 for Modbus TCP, Profibus DP SUB-D 9 for Profibus DP V1 connections. Communication services are check slave configuration (on power up) class 1 master, manage monitoring request (Global CONTROL and Get Master Diag) class 2 master, no master/master dialogue class 2 master etc. It weighs 0.62kg. This product can be used to connect Modicon Quantum, Premium, M580, and M340 Programmable Logic Controllers (PLC) to Profibus DP V1 via the I/O scanner function. The kit includes CD including the communication DTM and CD including the master DTM for configuration inside UNITY.

Products specifications

Attribute name Attribute value
Main
Kit composition CD including the Master DTM for PRM configuration inside UNITY, CD including the communication DTM
Product compatibility Premium PLC, Quantum PLC, M580 PLC, M340 PLC
Communication gateway Ethernet Modbus TCP to Profibus DP V1 gateway
Structure type industrial bus
Product or component type Profibus DP V1 remote master
Range of product Profibus DP
Complementary
Number of outputs 2
Module format standard
Method of access slave Modbus TCP, master class 2 Profibus DP, master class 1 Profibus DP
Physical interface RS485
Integrated connection type Profibus DP - SUB-D 9 for Profibus DP V1, 2 Ethernet TCP/IP - RJ45 for Modbus TCP
Number of slave 126
Communication service sync and freeze class 1 master, transfer slave diagnostic data class 1 master, set slave parameters (on power up) class 1 master, read/write DP slave I/O data class 1 master, Profibus FMS message handling not supported class 2 master, Profibus FMS message handling not supported class 1 master, no master/master dialogue class 2 master, manage monitoring request (Global CONTROL and Get Master Diag) class 2 master, acyclic DP V1 communication (R/W) class 1/2 master, check slave configuration (on power up) class 1 master
Net weight 0.62 kg
Transmission rate 10...100 Mbit/s, 100 m bus for Modbus TCP without repeater, 9.6 kbit/s, 4800 m bus for Profibus with 3 repeaters, 9.6 kbit/s, 1200 m bus for Profibus without repeater, 12 Mbit/s, 400 m bus for Profibus with 3 repeaters, 12 Mbit/s, 100 m bus for Profibus without repeater
Current consumption 200 mA at 24 V DC external
Number of inputs 2
Transmission support medium Modbus TCP category 5 shielded twisted pair (STP), Profibus 2 twisted shielded pairs cable
Mode of transmission NRZ
Environment
Operating altitude <= 2000 m
Relative humidity 10-95 % without condensation
Ambient air temperature for storage -45-85 °C
Ambient air temperature for operation 0-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 18.200 cm
Package 1 Length 26.500 cm
Package 1 Weight 638.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.638 kg

Related products

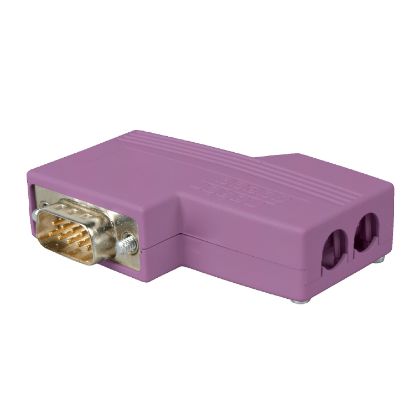

Picture of Profibus DP connector with terminator - for communication adaptor

Profibus DP connector with terminator - for communication adaptor

490NAD91103
$404.17 INC GST
View Detail

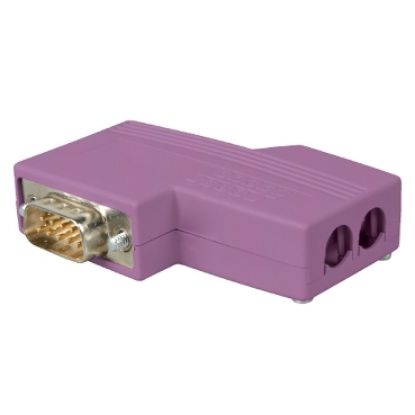

Picture of Profibus DP in-line connector - for communication adaptor

Profibus DP in-line connector - for communication adaptor

490NAD91104
$325.10 INC GST
View Detail
