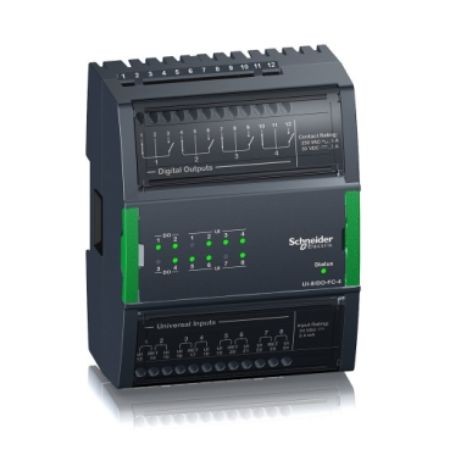

Picture of Central I/O module, SpaceLogic, 8 universal inputs, 4 digital Form C outputs
SKU:

SXWUI8D4X10001

Central I/O module, SpaceLogic, 8 universal inputs, 4 digital Form C outputs

$2,595.78 INC GST
Availability: Please contact our sales team on 1300 724 622.
Central I/O module, SpaceLogic, 8 universal inputs, 4 digital Form C outputs
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
CAD
Declaration of conformity
Product Page Link
Product Data Sheet
The SpaceLogic UI-8/DO-FC-4 is a universal input, 8 channel and digital output, 4 channel I/O expansion module for the SpaceLogic AS-P Server. The universal inputs are ideal for any mix of temperature, pressure, flow, status points and similar point types in a building control system. The digital outputs support digital Form C point types designed for direct load applications. The UI-8/DO-FC-4-H I/O expansion module features 8 universal inputs and 4 digital Form C outputs. Its dimensions are 114 mm (4.5 in.) in height, 90 mm (3.6 in.) in width and 64 mm (2.5 in.) in depth. This I/O module requires a SpaceLogic Central I/O Terminal Base (SXWTBIOW110001).

Products specifications

Attribute name Attribute value
Main
IP degree of protection IP20
Device short name UI-8/DO-FC-4
Depth 64 mm
Width 30 mm
Relative humidity 0-95 % non-condensing
Power consumption in VA 1.9 W
Ambient air temperature for storage -20-70 °C
Flame retardance UL94V0-5VB
Range EcoStruxure Building Operation
Net weight 181 g
Product name I/O Modules
Input/output type universal input
Product or component type I/O module
Ambient air temperature for operation 0-50 °C
Height 114 mm
Product brand Schneider Electric
Product certifications RCM, CE, FCC part 15 class B, ICES-003
Complementary
Analogue input type configurable voltage, current or probe 10 kOhm with shunt, configurable voltage, current or probe 1 kOhm connection of probes, configurable voltage, current or probe 1.8 kOhm connection of probes, configurable voltage, current or probe 2.2 kOhm connection of probes, configurable voltage, current or probe 10 kOhm connection of probes, configurable voltage, current or probe 20 kOhm connection of probes, configurable voltage, current or probe 0...10 V input voltage, configurable voltage, current or probe 0...20 mA
Product compatibility Balco, I/NET, Johnson Control, Satchwell, Continuum, Xenta, Honeywell
Electrical connection plug-in sub-base
Material ABS + PC
Discrete input number 8
Discrete output number 4
Control type without
Local signalling LED (green/red) for low signal level,  LED (green/red) for high signal level
Range compatibility EcoStruxure Building Operation TB-IO-W1 terminal base
Standards FCC CFR 47 part 15, UL 916, UL 864
Mounting support DIN rail, wall
Discrete input voltage 24 V
Switching frequency 25 Hz
Discrete output type relay
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12 cm
Package 1 Width 9 cm
Package 1 Length 5.8 cm
Package 1 Weight 200 g
