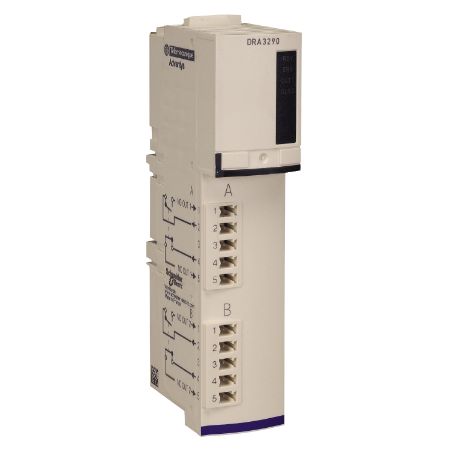

Picture of standard digital output kit, Modicon STB, 24V DC, 2 relay output
SKU:

STBDRA3290K

standard digital output kit, Modicon STB, 24V DC, 2 relay output

$480.07 INC GST
Available for Shipping : 21-Aug-2025
standard digital output kit, Modicon STB, 24V DC, 2 relay output
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Circularity Profile
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Discrete output voltage type DC, AC
Range of product Modicon STB distributed I/O solution
Discrete output function 1 NO + 1 NC
Discrete output type relay
Kit composition STBDRA3290 module, STBXTS2110, 5-terminal spring clamp connector, STBXBA2000 base, STBXTS1100, 5-terminal screw type connector
Discrete output number 2
Discrete output voltage 115...230 V, 24 V
Product or component type standard digital output kit
Complementary
Product compatibility power distribution module STBPDT3100/3105, I/O base STBXBA3000
Mechanical durability 1000000 cycles
Fallback status user configurable standard NIMs, state 0 basic NIMs
Discrete output current 7000 mA
Marking CE
Protection type output surge protection GMOV, coil protection integrated fuse on PDM time lag 10 A
Response time 10 ms on-to-off, 10 ms off-to-on
Hot swapping fallback yes for standard NIMs
Output voltage 5...30 V DC, 20...250 V AC
Electrical durability 100000 cycles resistive
Status LED 1 LED (red) module error (ERR), 1 LED per channel (green) channel status (OUT1 to OUT2), 1 LED (green) module status (RDY)
Discrete output logic positive or negative
Height 28.1 mm
Cold swapping yes
Insulation between channels and logic bus 1780 V for 1 minute
[Us] rated supply voltage 24 V DC
Depth 70 mm
Overvoltage category II
Width 128.3 mm
Minimum load 50 mA
Insulation between channels 500 V for 1 minute
Net weight 0.13 kg
Current consumption 55 mA at 5 V DC for logic bus
Surge current 20 A 10 ms capacitive
Supply power distribution module
Insulation between logic bus and actuator bus 1500 V for 1 minute
Reset manual reset COM fault
Switching capacity in VA 2100 VA resistive
Environment
Ambient air temperature for operation 32...140 °F without derating, 0-60 °C (without derating)
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C without derating, -40...185 °F without derating
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Operating altitude <= 2000 m
Vibration resistance +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Standards IEC 61131-2
Product certifications CSA, UL, FM Class 1 Division 2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.000 cm
Package 1 Width 7.500 cm
Package 1 Length 13.000 cm
Package 1 Weight 197.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.350 kg
