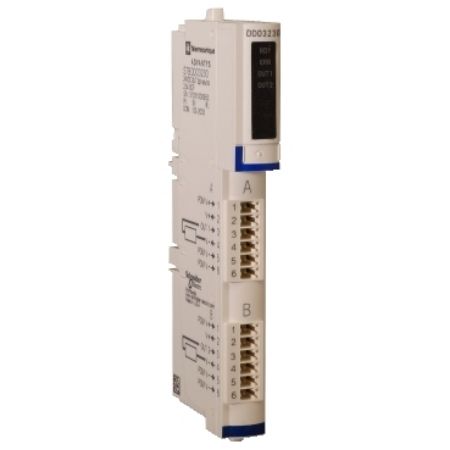

Picture of standard digital output kit STB - 24 V DC - 2 O
SKU:

STBDDO3230K

standard digital output kit STB - 24 V DC - 2 O

$460.46 INC GST
Available for Shipping : 21-Aug-2025
standard digital output kit STB - 24 V DC - 2 O
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Circularity Profile
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Discrete output voltage type DC
Range of product Modicon STB distributed I/O solution
Discrete output type solid state
Kit composition STBDDO3230 module, STBXTS1100, 6-terminal screw type connector, STBXTS2100, 6-terminal spring clamp connector, STBXBA1000 base
Discrete output number 2
Discrete output voltage 24 V
Product or component type standard digital output kit
Complementary
Maximum load capacitance 50 µF
Product compatibility I/O base STBXBA1000, power distribution module STBPDT3100/3105
Fallback status user configurable standard NIMs, state 0 basic NIMs
Discrete output current 2000 mA
Marking CE
Protection type thermal overload protection, short-circuit protection,  reverse polarity protection, power protection 1 external fuse per output time lag 2.5 A
Response time 720 µs on-to-off, 520 µs off-to-on
Maximum load inductance 500 mH at 4 Hz
Hot swapping fallback yes for standard NIMs
Output voltage 19.2...30 V DC
Status LED 1 LED (red) module error (ERR), 1 LED per channel (green) channel status (OUT1 to OUT2), 1 LED (green) module status (RDY)
Discrete output logic positive or negative
Height 13.9 mm
Cold swapping yes
Insulation between channels and logic bus 1500 V for 1 minute
[Us] rated supply voltage 24 V DC
Maximum leakage current 1 mA at state 0 30 V
Depth 70 mm
Overvoltage category II
Width 128.3 mm
Minimum load 2 mA
Insulation between channels 1500 V for 1 minute
Net weight 0.116 kg
Current consumption 45 mA at 5 V DC for logic bus
Surge current 10 A 0.5 ms
Supply power distribution module
Absolute maximum voltage 56 V 1.3 ms
Reset manual or automatic reset COM fault
Environment
Ambient air temperature for operation 32...140 °F without derating, 0-60 °C (without derating)
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C without derating, -40...185 °F without derating
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Operating altitude <= 2000 m
Vibration resistance +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Standards IEC 61131-2
Product certifications UL, CSA, FM Class 1 Division 2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.500 cm
Package 1 Width 8.000 cm
Package 1 Length 13.000 cm
Package 1 Weight 136.000 g
Unit Type of Package 2 2
Number of Units in Package 2 28
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.123 kg
