SKU:

SSP3A225BDR

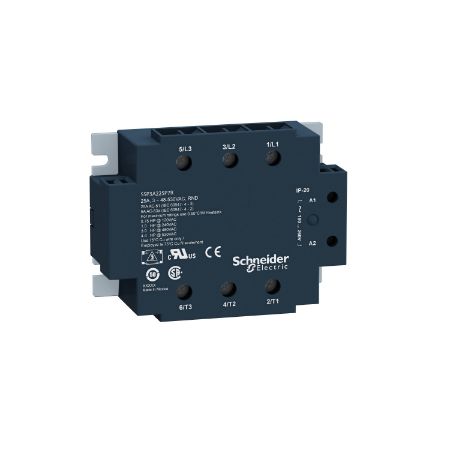

three phase relay, Harmony Solid State Relays, 25A, panel mount, random switching, input 4 to 32V DC, output 48 to 530V AC

Old price: $457.60 INC GST
$434.72 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
three phase relay, Harmony Solid State Relays, 25A, panel mount, random switching, input 4 to 32V DC, output 48 to 530V AC
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Image of product in real life situation
Instruction sheet
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet
SSP panel mount relay is part of the Harmony Solid sate relays range. This three-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 25A, is controlled withA 4V to 32V DC circuit, has a rated load voltage of 48V to 530V AC output. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events

Products specifications

Attribute name Attribute value
Main
Device short name SSP
[Uc] control circuit voltage 4...32 V
[In] rated current 25 A
Solid state output type random voltage switching
Network number of phases 3 phases
Product or component type solid state relay up to 30 A
Output switching mode random voltage switching
Mounting support panel
Range of product Harmony Solid State Relays
Connections - terminals screw connectors
Complementary
Motor power kW 3.24 kW at 40-40 °C 530 V AC, 2.22 kW at 40-40 °C 480 V AC, 0.74 kW at 40-40 °C 240 V AC, 0.56 kW at 40-40 °C 120 V AC
Depth 35.4 mm
Input current limits 24-35 mA
Width 101.3 mm
Capacitance unbalance 8 pF for input/output
Maximum switching voltage 1 V DC turn-off
DV/dt 500 V/µs off-state at maximum voltage
Absolute maximum voltage 1200 V
Device presentation complete product
Control type without test button
IP degree of protection IP20
Maximum leakage current 3 mA off-state
Minimum switching voltage 4 V DC turn-on
Net weight 0.24 kg
Local signalling LED, green for input
Load current 0.1-25 A
Surge current 85 A for 1 s, 300 A for 16.6 ms, 275 A for 20 ms
Response time 0.1 ms (turn-on), 8.33 ms (turn-off)
Dielectric strength 4 kV AC for input or output to case, 4 kV AC for input/output
Connections - terminals screw terminals: 1 x 1.5...1 x 10 mm², (AWG 16...AWG 8) for output, screw terminals: 1 x 0.2...1 x 2.5 mm², (AWG 24...AWG 14) for input
Maximum voltage drop <1.35 V on-state
Maximum I²t for fusing 370 A².s for 8.3 ms at 60 Hz, 380 A².s for 10 ms at 50 Hz
Thermal resitance 0.24 °C/W
Insulation resistance >= 1000 MOhm at 500 V DC
Tightening torque 1.7...2.2 N.m for output, 0.9...1.1 N.m for input
Motor power hp 4.4 hp 40 °C 530 V AC, 3 hp 40 °C 480 V AC, 1 hp 40 °C 240 V AC, 0.75 hp 40 °C 120 V AC
Height 79.7 mm
Cos phi 0.5-0.5 (with maximum load)
Environment
Overvoltage category III
Ambient air temperature for storage -40-125 °C
Flame retardance V0 conforming to UL 94
Marking CE
Pollution degree 2
Standards IEC 62314, IEC 60950-1, IEC 61000
Ambient air temperature for operation -40-80 °C
Product certifications UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.0 cm
Package 1 Width 8.5 cm
Package 1 Length 12.5 cm
Package 1 Weight 278.0 g
Unit Type of Package 2 2
Number of Units in Package 2 27
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 11.386 kg
