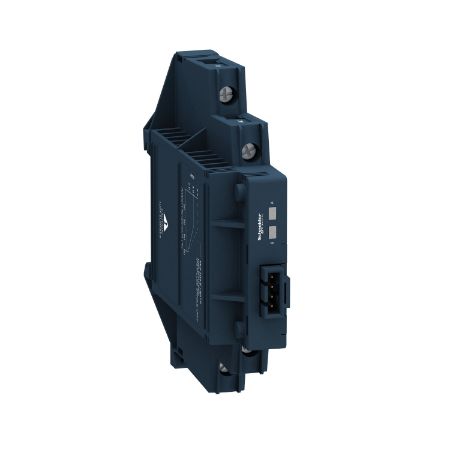

Picture of Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, random switching, input 4...32V DC, output 24…280V AC
Picture of Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, random switching, input 4...32V DC, output 24…280V AC
Picture of Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, random switching, input 4...32V DC, output 24…280V AC
Picture of Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, random switching, input 4...32V DC, output 24…280V AC
Picture of Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, random switching, input 4...32V DC, output 24…280V AC
Picture of Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, random switching, input 4...32V DC, output 24…280V AC
SKU:

SSM2A16BDR

Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, random switching, input 4...32V DC, output 24…280V AC

Old price: $147.84 INC GST
$140.45 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, random switching, input 4...32V DC, output 24…280V AC
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Catalog
Environmental Disclosure
CAD
Image of product in real life situation
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony SSM solid state modular DIN rail dual channel relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 24V to 280V AC with random voltage switching, ideal for inductive loads. It also has a visual indicator showing the status of each of its inputs. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. It also has a visual indicator LED for a simpler troubleshooting and commissioning. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name SSM
[Uc] control circuit voltage 4...32 V
Number of channels 2
Network number of phases 1 phase
Product or component type solid state relay up to 10 A
Output switching mode random voltage switching
Range of product Harmony Solid State Relays
Connections - terminals screw connectors
Complementary
Depth 84.4 mm
Overvoltage category III
Input current limits 14-16.87 mA
Width 18 mm
[In] rated current 6 A
Capacitance unbalance 10 pF for input/output
Solid state output type random voltage switching, SCR output
Maximum switching voltage 1 V DC turn-off
Local signalling LED (green) for input status
DV/dt 500 V/µs off-state at maximum voltage
Absolute maximum voltage 600 V
Device presentation complete product
Maximum leakage current 0.1 mA off-state
Minimum switching voltage 4 V DC turn-on
Net weight 0.09 kg
Load current 0.15-6 A
Response time 0.1 ms (turn-on), 0.5 cycle (turn-off)
Surge current 750 A for 20 ms, 715 A for 16.6 ms
Connections - terminals screw terminals: 1 x 0.3...1 x 2.5 mm², (AWG 22...AWG 14) for output, screw terminals: 1 x 0.3...1 x 1.5 mm², (AWG 22...AWG 16) for input
Maximum voltage drop <1.3 V on-state
Maximum I²t for fusing 2330 A².s for 8.33 ms at 60 Hz, 2560 A².s for 10 ms at 50 Hz
Mounting support symmetrical DIN rail
Insulation resistance 1000 MOhm at 500 V DC
Tightening torque 0.5...0.8 N.m for output, 0.5...0.8 N.m for input
Motor power hp 0.16 hp 40 °C 240 V AC
Output voltage 24...280 V AC
Height 90.3 mm
[Uc] control circuit voltage 4...32 V DC
Cos phi 0.5-0.5 (with maximum load)
Environment
Ambient air temperature for storage -30-100 °C
Flame retardance V0 conforming to UL 94
IP degree of protection IP20
Marking CE
Dielectric strength 2.5 kV AC for input or output to case, 2.5 kV AC for input/output
Pollution degree 2
Standards IEC 61000, IEC 60950-1, IEC 62314
Ambient air temperature for operation -30-80 °C
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.8 cm
Package 1 Width 2 cm
Package 1 Length 9.3 cm
Package 1 Weight 102 g
Unit Type of Package 2 2
Number of Units in Package 2 72
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 7.799 kg
