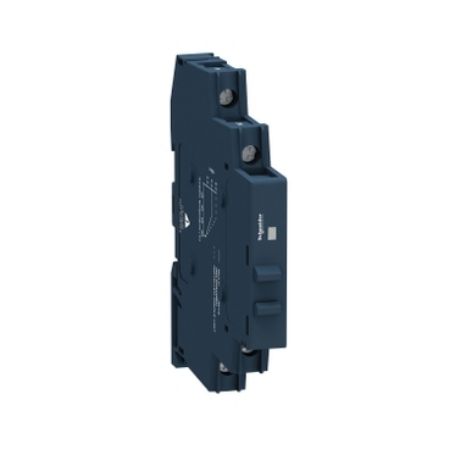

Picture of Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, DC swtching, input 4...32V DC, output 1…60V DC
Picture of Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, DC swtching, input 4...32V DC, output 1…60V DC
Picture of Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, DC swtching, input 4...32V DC, output 1…60V DC
Picture of Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, DC swtching, input 4...32V DC, output 1…60V DC
Picture of Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, DC swtching, input 4...32V DC, output 1…60V DC
Picture of Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, DC swtching, input 4...32V DC, output 1…60V DC
Picture of Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, DC swtching, input 4...32V DC, output 1…60V DC
Picture of Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, DC swtching, input 4...32V DC, output 1…60V DC
Picture of Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, DC swtching, input 4...32V DC, output 1…60V DC
SKU:

SSM1D26BD

Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, DC swtching, input 4...32V DC, output 1…60V DC

Old price: $84.48 INC GST
$80.26 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, DC swtching, input 4...32V DC, output 1…60V DC
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Catalog
CAD
Environmental Disclosure
Declaration of conformity
Image of product in real life situation
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony SSM solid state modular DIN rail single-phase relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 1V to 60V DC with DC switching. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Device short name SSM
[Uc] control circuit voltage 4...32 V
Number of channels 1
Range of product Harmony Solid State Relays
Network number of phases 1 phase
Product or component type solid state relay up to 10 A
Output switching mode DC switching
Connections - terminals screw connectors
Complementary
Input current limits 8-11 mA
Maximum switching voltage 1 V DC turn-off
Device presentation complete product
Minimum switching voltage 4 V DC turn-on
Connections - terminals screw terminals: 1 x 0.3...1 x 2.5 mm², (AWG 22...AWG 14) for output, screw terminals: 1 x 0.3...1 x 1.5 mm², (AWG 22...AWG 16) for input
Maximum voltage drop <0.6 V on-state
Insulation resistance 1000 MOhm at 500 V DC
Output voltage 1...60 V DC
Height 90.3 mm
Depth 83.7 mm
Overvoltage category III
Width 11 mm
[In] rated current 6 A
Resistance 0.1 Ohm on-state
Capacitance unbalance 10 pF for input/output
Solid state output type DC switching, Mosfet output
Local signalling LED (green) for input status
Absolute maximum voltage 60 V
Maximum leakage current 0.1 mA off-state
Net weight 0.05 kg
Load current 0.0025-6 A
Response time 0.3 ms (turn-off), 0.6 ms (turn-on)
Surge current 60 A for 10 ms
Mounting support symmetrical DIN rail
Tightening torque 0.5...0.8 N.m for output, 0.5...0.8 N.m for input
[Uc] control circuit voltage 4...32 V DC
Environment
Ambient air temperature for storage -30-100 °C
IP degree of protection IP20
Marking CE
Pollution degree 2
Ambient air temperature for operation -30-80 °C
Flame retardance V0 conforming to UL 94
Dielectric strength 4 kV DC for input or output to case, 4 kV DC for input/output
Standards IEC 60950-1, IEC 62314, IEC 61000
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.700 cm
Package 1 Width 9.300 cm
Package 1 Length 8.700 cm
Package 1 Weight 63.000 g
Unit Type of Package 2 2
Number of Units in Package 2 96
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.562 kg
